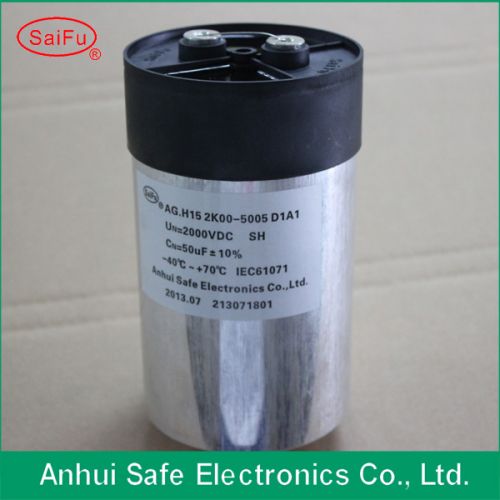

Power Solar Capacitor

We are offering Power Solar Capacitor.
DC_Link capacitor for power eletronics:
The capacitor for power electronics are use of metal-based thin-film without a sense of style winding,special spray gold process,moldel case ,or Myra tape packing,fire-retardant expoxy resin seal,copper bolts ,copper nuts or inserts leads.
DC_Link capacitor feature:
1.Used in DC_Link circuits ,can replace electrolytic capacitor
2.Low ESR, high rippe curent handing capabilities and large curent shock.
3.Low Ls,good high frequency characteristics
4.SH property
5.Aluminum case,filled with resin.
power electronics capacitors technical data:
Temperature range -40°C~+85°C
Capacitor range 50~1200uF
Capacitance deviation +-5%(J)
Voltage range 500~15000VDC
Dielectric 1.5UN60s
Dissipation tgδ≤ 0.002
Insulation resisitance CxRs≥5000S(at20°C 100V.DC 60S)
Shock current capability dvdt>50vμs
Flammability
UL94V-0
Stray inductance ≤30nH
Effective Current
10~80A
Reference Standard Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1
Case components
aluminum,plastic,304 stanless steel
Terminals tinned brass nut or screws
Installation
Whatever installation
Failure rate
50 FIT
