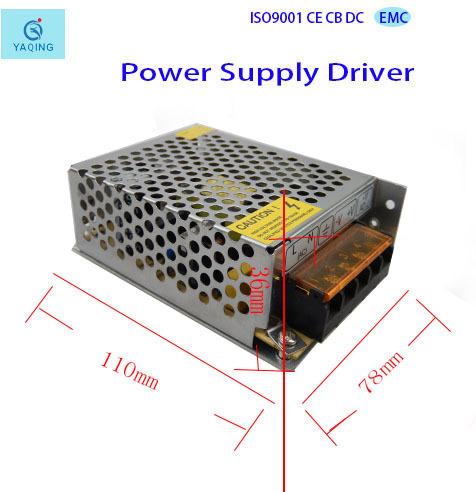

Power Supply ,LED Power Supply 3V 10A

Input Voltage&Frequency Range
90V~240V (47Hz-63Hz)
Surge Current
1 0A@120VAC (Cold boot)
Output Current range
5V±5% (Rated Output Voltage)
Overload Protection
105%~200% Rated load. Self-recovery
Overvoltage Protection
115%~135% Rated Output Voltage
Short-circuit Protection
self-recovery
Type of cooling
natural cooling
Storage temperature and humidity
-20°C~+85°C 20%~95%
Safety of security
According with GB4943,UL60950,EN60950
EMC security
According with GB4943,UL60950,classa
EN61000-3-2.EN61000-4-2,3,4,5,6,8,11
~~~~~
Work Condition
10°-50°C,20%~90%RH(No Coagulate Frost)
Dimension
158*98*42mm
Weight
0.50kg
Model Name
Output voltagecurrent
Output power
Stabilivolt accuracy
Rippl and Noise
effeciency
AD0310A
3V
10A
30W
±10%
�100mV
90%
