Power Transformers, Current : 300 mA

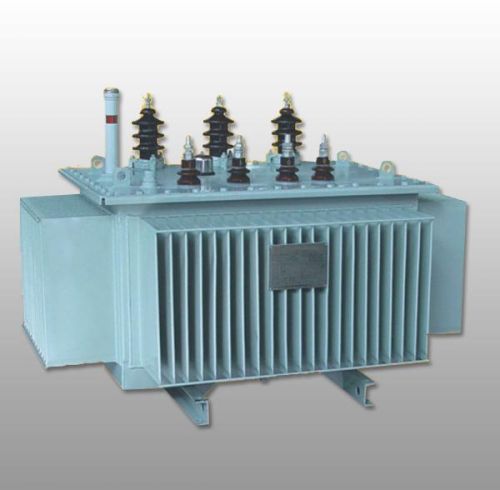

General introduction of s15-m type oil-immersed amorphous alloy distribution transformer
oil filled electrical transformer is in development at s9 series transformer.it is in low loss, low noise, capable of short-circuit, good impact resistance and well-run performance.
It applies new type insulation structure and improves the ability of short-circuit resistance.the iron core is made of high-quality cold-rolled silicon-steel plate.high-voltage winding group is made of high quality copper wires and it adopts multilayer cylindrical structure.all fasteners have been processed with special treatment to prevent them from loosening.
environmental conditions:
1.type:outdoor
2.normal service conditions:
3.the height above the sea level is below 1000m;
4.ambient temperature: highest air temperature+40 ℃, lowest air temperature-25℃
5.relative air humidity:≤90%(+25℃)
6.installation site: no corrosion gas, no obvious dirt
for agricultural power distribution and lighting
transformer standard:
gb1094.1~2-1996 power transformer
gb1094.3,5-2003 power transformer
gbt6451-2008 three phase oil immersed power transformer
deliver and shippment :
sea transportation. 1 set transformer per wooden carton.
