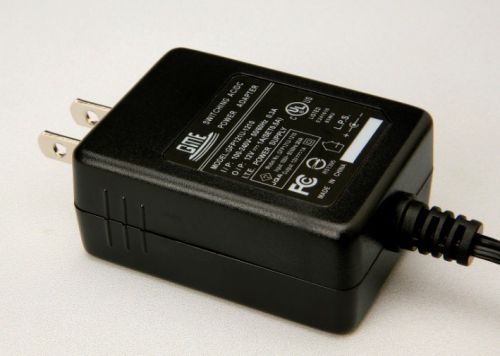

Contact SupplierWe are offering 9v1.6a power transformer /ac/dc converter ,12v power adapter ,switching power supply for us plug ,ul/cul,fcc,pse ,cb certified ,rohs .
specification details as below:
description
market: usa,canada,japan,china
wall mount type
meet cec regulations
rohs compliance
efficiency level v
general specifications
maximum output power: 15w
input voltage: 90~264vac
input frequency: 47hz~63hz
input current: 0.36a
no load power consumption: less than 0.3w
efficiency: meet cec
ripple noise (max): +1% voltage max
line regulation: ±1%
load regulation: ±5%
hold-up time: 16ms
over voltage protection: 120%
operating temperature: 0~40°c
storage temperature: -20~85°c
storage humidity: 5%rh~90%rh
withstand voltage: ac 3kv
burn-in test: 100% full load
mtbf: 50000hours
weight: about 120g
dimensions
lxwxh: 60.2x44x26.2 (mm).
