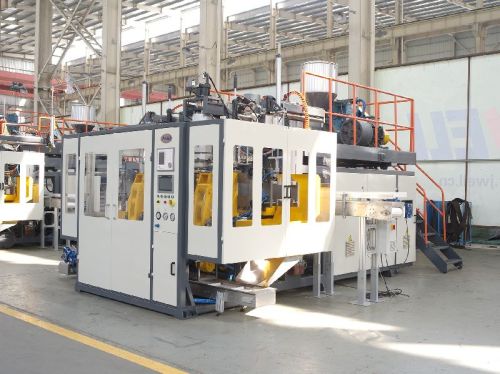

PP BLOW MOULDING MACHINE, Certification : CE ISO

Guarantee 1 year power 3-phase 4 wires sructure,380v3p50hz total power 94-102kw average energy consumption 55.6kw—60.8kw oil pump motor power 15kw humidity degree ≤95% temperature 0-35℃ cooling water ≤20℃, ≥0.3mpa water consumption 5th air pressure 0.6mpa air consumption 70m³h suitable material hdpepp max container volume: 20l the max. Plasticizing capacity 130kghr-150kgh note the output varies according to the materials and the operation conditions. Equipment list jws9024single screw extruder 1set auto loader: 300kgh 1set moog100 parison controller 1set blowing pin device 2set continuous type die head 1set mold open and close device 2set take out robot 2set hydraulic system 1set pneumatic system 1set electrical system 1set specifications of the production line diameter 90mm(double station) ld 24:1 material 38crmoala treatment nitriding heat-treatment material 38crmoala treatment nitriding heating control zones 4 zones heating power 4.5kw×4 cooling system by blower fan cooling power 0.25kw×4 material of the body qt225 gear type helical gears material of the gear 20crmnti heat treatment of the gear surface quenching bearings chinese famous bearing lubricating system press system cooling system equipped with separated cooling system driving motor ac motor made in china power 45kw control system abb inverter auto loader 300kgh die heard "continous type die head (including heating ring )" heating control zone 4 zones heating power max 10kw
