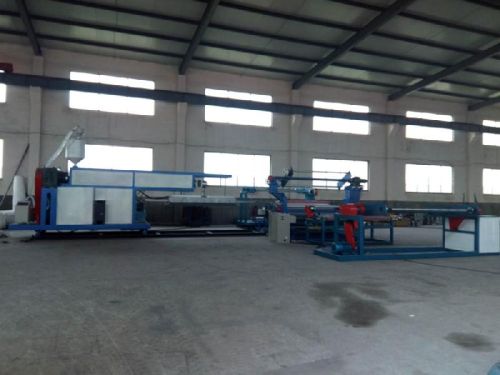

Electric driven PP FILM COATING AND LAMINATING MACHINE

1.applicability：coating 40gsm～120gsm roll base bopp, nonwoven, fabric and paper.
2. Coating materials: pe, pp, eaa, eva and so on.
3. Coating width: 800~1000mm.
4.coating thickness:0.010～0.2mm(single layer).
5.evennessdegreeofcoating:error±3%(according to actually base materials).
6. Strength of peel off: 3-5n 30mm (according to the actual coating material).
7. Max extruding capacity: 120kgh.
8. Machine design speed: 0-100mmin.
9. Unwinding system adopts 360 turnover double shafts work station, tension is automatically controlled by magnetic blade technology, and tension feedback system. Rectify system adopts trolley type automatic pneumatic rectifying equipment (epc), rectify journey: ±50mm.
10. Extruder system: pedestal for extruder adopts the light rail pedestal to move automatically from front to back, up and down.
11. Screw & barrel: φ65mm, l=33d, screwmaterial:38crmoal. Hardening and surface itrogen treated (nt), enhanced double mixing type, with high capacity.
12. Digital intelligent temperature control system.
13. Loop of porcelain enamel for screw and barrel; (each zone with over load short circuit device). 14. Stainless steel inside heat die(each zone with over load short circuit device).
15. T-die: new type feather edge mould,material:5crnimov, hardening and tempering, deal with chrome, having good tenacity, will not transmogrification after frequently using in high temperature.
16. The reduction gear box adopts high strength hard tooth surface reduction box with high obscuration and more reliable.
17. Winding adopts turret rewinding. Automatic accounting and remind to change webs.
18. Max diameter of unwinding:1000mm, max diameter of winding:1000mm.
19. Pneumatic shaft for unwinding and winding:3inch(diameter:76mm).
20. Total power: 100kw.(cost 50kwh during running).
21. Machine dimension(l×w×h):8800mm×7700mm×3200mm.
22.weight:about18000kg.
