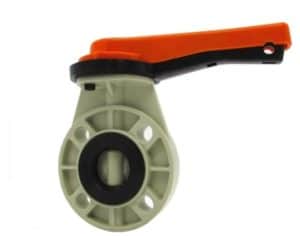

PP-H Butterfly Valve Gear Operate ANSI size from 2″ to 24″, lug type and wafer type fit standard ANSI B16.5 CL150. body made by material PP-H and seals by EPDM. PP-H Butterfly Valve suitable for industrial application and water supply, it has good property of corrosion resistance for chemicals, PP-H butterfly valve works temperature from 0 to 70 degree in generally, and pressure rate from 0.2Mpa to 1.0Mpa.

Application of PP-H Butterfly valve :

• Acid Fillings Stations
• Effluent Treatrnent/Disposal Plants
• Laboratories
• Refineries
• Automotive Industry
• Electroplating Plants
• Nuclear Research Centres
• Textile Mills
• Chemical Industry
• Food and Beverage
• Paper & pulp mills
• Thermal Baths
• Construction (Plumbing)
• Galvanizing Plants
• Pharmaceutical Industry
• Water Purification Pants
• Desalination Plants
• Industrial washing/bleaching lines
• Pickling Lines
• Packaging of Electrical Components

PP-H gear drive butterfly valve with following specifications:

Basic specification

Size: DN50~DN400 (2 inch ~ 16 inch)
Wafer connection: DIN PN10; ANSI CL150; JIS 10K
Body Material: PP-H
Disc Material: PP-H
Seal material: EPDM; NBR, NR
Design pressure: 0.2~1.0Mpa (PN2~10 bar)

 Feature of valve

Steel frame inside of body and disc make strengthen the valve
Electric and pneumatic actuator mounting are available
Gear box has aluminium alloy and plastic shell for optional
