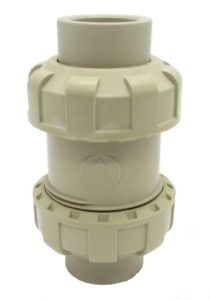

PP-H Check Valve

PP-H  Check Valve : True Union PP-H Ball Check Valve PP-H model is a ball type Check Valve with true union end, socket connection as per standard DIN, ANSI, JIS, CNS, BS. seat and sealed by EPDM o ring, ball with solid type make the valve sealing better. PP-H true Union Ball Valve is easy to install and replace, it is suitable for vertical installation, used for water supply, water treatment, agriculture irrigation, finishing farm, etc.

Application of PP-H Check Valve :

• Acid Fillings Stations
• Effluent Treatrnent/Disposal Plants
• Laboratories
• Refineries
• Automotive Industry
• Electroplating Plants
• Nuclear Research Centres
• Textile Mills
• Chemical Industry
• Food and Beverage
• Paper & pulp mills
• Thermal Baths
• Construction (Plumbing)
• Galvanizing Plants
• Pharmaceutical Industry
• Water Purification Pants
• Desalination Plants
• Industrial washing/bleaching lines
• Pickling Lines
• Packaging of Electrical Components

Basic specification
Size: DN15~DN50 (1/2 inch ~ 2 inch)
Body Material: PP-H -U;PP-H -C;PP-H
Seal material: EPDM
Socket connection: DIN,ANSI,JIS,CNS
Design pressure: 1.0Mpa(PN10 bar)

Feature of valve
Ball orbital design lower the valve leaking risk. Double union design easy to replace and install of valves  Hollow ball design make the valve seal better Simple structure make it easy to diagnose problem and repair valve Flange end is optional.
