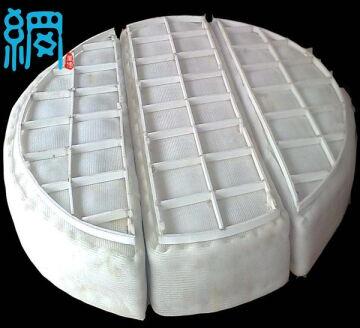

PP Wire Mesh Mist Eliminator

PP Wire Mesh Mist Eliminator

Wire Mesh Demister is a kind of vapor-liquid separating device,constructed by knitted wire mesh and metal frame,
mainly used to separate drops of the diameter between 3μm to 5μm. It is widely used in the chemical,petroleum,medical,light,metallurgy and environmental protection industries.

1.Material: Stainless Steel Wire, Nickel Wire,Copper Wire,Monel Wire,PP wire
2.Specification:
(1).Wire Diameter: 0.2mm,0.22mm,0.23mm,0.25mm,0.28mm,0.3mm,0.35mm
(2).Mesh Size: 2x3mm, 4x6mm up to 12x6mm,according to cutomers’request.
(3).Demister Shape: Round, Cricular, Square, Drawer type.
(4).Height or Thickness(H): 100mm and 150mm
(5).Pad Diameter(D): DN300mm-DN6000mm
3.Features:
(1).Low pressure drop
(2).Low maintenance
(3).Easy installation
(4).Engineered product at a reasonable cost
(5).High quality control
4.Application:
(1).Absorption columns
(2).Distillation columns
(3).Scrubbers
(4).Pressure Vessels
(5).Teg Contactors
(6).Glycol / Hydrocarbon Separators
(7).Gas and Air Scrubbers
(8).Gas Filter Separation Equipment
(9).Flame Arrestors
5.Packing:
Demister pads are generally packed in blocks.They are wrapped with plastic film and outside with wooden cases or wooden pallets.
