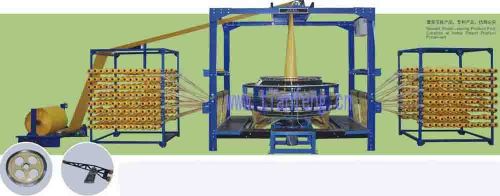

Contact SupplierPp woven bag making machine ( circular loom)
s-yzj-7504s four shuttle small cam circular loom
1.small cam and connecting rod rolling wheel transmission which is the most advanced technology is adopted�making it easy and stable to run.
2.rolling transmission is adopted in entire structure instead of slide block and slide rod,which does not need lubrican and decreases the wearing part.
3.base band belt from italy is used,which is durable and will not break or be stretched.
4.it can be configured with auto matically stop detecting unit when meeting the situation of warpweft breaking or weft ending.the stoppage unit is sensitive and reliable.
5.it is high-efficient and energy economical.the highest rotation speed of the main motor can reach 180rmin and the power is 1.52.2kw,which can save 10 thousand degree electricity compared with the traditional four shuttle circular loom whose power is 4kw.
Main technique parameter
model s-yzj-7504s
number of shuttle 4
weaving folding width 300-750mm
max.number of warp 640-768
revolution of main motor 140-180rmin
production capacity 1.4-1.8mmin
power of main motor 1.5-2.2kw
total power 2-2.7kw
weight(about) 2000kg
overall dimension(l*w*h) 8500*2300*2730mm
