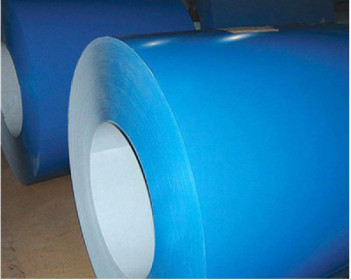

PPGI Steel Coil

Quality standardJIS G3002, GB/T251B, EN 10142-DX51D and ASTM_A653_A653M-05

Grade of steelSGCC (DX51D+Z)

PaintHigh quality paint with special pigment paste and resin

Widh760mm—1250mm

Thickness0.13mm—0.8mm

Zinc coating20g/m2—180g/m2

Alu-zinc coating30g/m2—150g/m2

Top paint coating5+10microns—5+20microns

Back paint coating5—7microns, 8—10microns, > 10micons

Color No.As per RAL No. or samples

Tensile strength270—550MPa

Yield strength300MPa, 350MPa, 450MPa, 550MPa

Pencil hardness3H

GlossinessLow ≤ 40, Middle 40—70, High ＞70

Bending test≤ 3

Hardness65—95, soft or full hard

Coil inner diameter508mm or 610mm

Weight per coil3—5 tons

PackageHorizontal or vertical package with paper or iron inner drum, plastic film, water proof paper, steel plate, and packing steel strip

MOQ25 tons

More or less10%

Delivery time15 days after receipt of the pre-payment or original LC

Payment terms20% pre-payment, the balance by LC at sight or by T/T against the fax copy of Bill of Lading

ApplicationsWidely used for roofs, outer walls, ovens, explosive-proof steel, electrically controlled cabinets, and industrial freezers in the residential and industrial buildings

Place of originShandong, China
