PPR Water Pipe Making Machine, Brand Name : Leader Machinery

We are offering ppr water pipe making machine.
Introduction:
using a special screw design and enhanced plasticization effect of pp-r to ensure high-quality high-speed extrusion, high shear stress and low temperature to ensure that raw materials of high-performance plastics extrusion, the measurement on the feeder with the drying system to ensure that pp-r extrusion uniform.
speification:
diameter range of 20-160mm,
maximum line speed up to: 10mmin
features of this extrusion line:

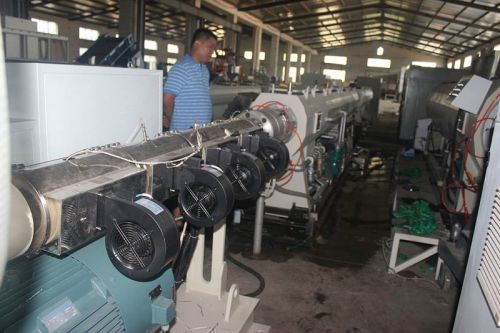

this extrusion line is consist of the single screw extruder, the vacuum calibration, the hualingoff machine, cutting machine and stacker
1) single screw extruder:
screw adapts the bimetalic material with very good quality.
Model: lsj6530, lsj9030
2) single screw co-extruder:
for extruding marking line
model: sj2525, sj3025
3) gearbox reducer:
hardening teethgear surface and low noise
famous brand made in jiangxi jiangyin
4) die head design
split spiral die head design
specially designed for ppr .
uniformed plasticization and high efficient extrusion.
5) vaccum clibartion tank and vacuum water spraying cooling tank
material: high-degree excellent stainless steel
has a very good cooling and forming effect.
6) scrapless cutting machine
adopts imported plc control
high precision and accuracy
can be length pre-setting
7) main electrical components:
famous imported brands:omron ,abb, schneider, simens, delix, rkc.
