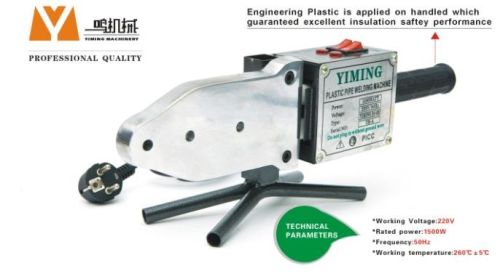

PPR Welding Machine, Brand Name : YiMing, Packaging Type : black

YMG-series temperature pipe welding machines are suitable in welding various plastic pipes like PPR pipes, PE pipes, PB pipes, PE-RT pipes, PB pipes,etc,these kind of micro digital welding machines are equipped the digital temperature of industrial class, with the excellent features of controlling the temperature precisely and flexibly. The handle is made of engineering rubber, it has the good insurability, and can resist the high temperature. In addition, all the moulds are covered with American famous coatings Teflon, to protect the plastic pipes from adhering, these micro digital welding machines can ensure the plastic pipes against leakage and break, they are all necessary pipeline tools, the concerned products of this kind are as follows
Technology parameter
1)temperature rang:0-300degree
2)voltage rang:220±25v
3)power:600w 50HZ
4)specification:20mm 25mm 32mm
5)welding material: PPR PE PB
6)Working temperature(°C):240-280,best temperature is 260
7)Working range:20-63(mm)
8)Foot: A special foot with clamp that enables working at any location
9)Safety indicators: the insulation resistance of not less than 1M
10) Leakage current: ≤ 5mA (AC RMS).
USING
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert.
