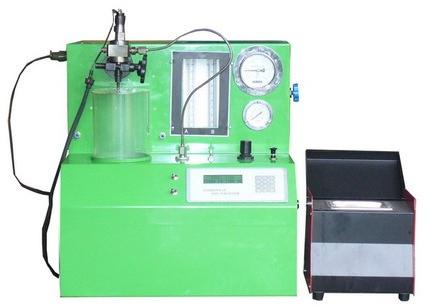

Pq-1000 Common Rail Injector Tester

We are offering pq-1000 common rail injector tester.
1. main voltage: 220v 2. main frequency: 50/60hz 3. max filling volume per tank: 2l 4. input system pressure (bar/psi): 0-10/ 0-145 5. system build-up pressure (bar/psi): 0-1800/ 0-26100 6. size: 650*400*500mm 7. weight: 85kg
8. Air gauge: 0-1.6mpa. 9. Graduate: 90ml/2piece. 10. Fuel tank: 2.5l. 11. Air in: 0.8mpa, 36l/min. 12. Electrical power in: ac220v/50(60) hz
function:
1. check the injector starting pressure 2. Assessment of the injector spray fog quality 3. Inspection of the injector spray oil range 4. Check of the injector seal and angel 5. Check of the injector oil flow 6. The machine has fog dissipation convulsion device to improve the work condition. 7. It has the two grade filter to ensure the cleanliness of test. 8. The parameter of common rail injector (fuel spray counts, frequency, pulse width, pressure etc.) can be set willfully. 9. It also can clean the common rail injector by ultrasonic cleaning instrument.
