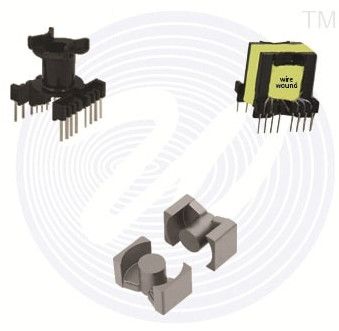

    Ferrite Core PQ Series SMPS Transformers, Packaging Type : Box
    • PQ Series SMPS Transformers

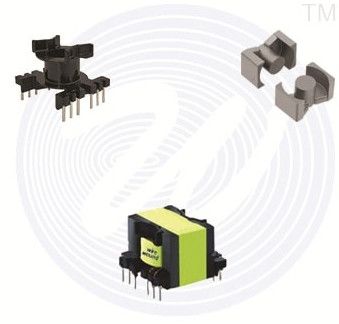

    • 2535186
    • 2535187

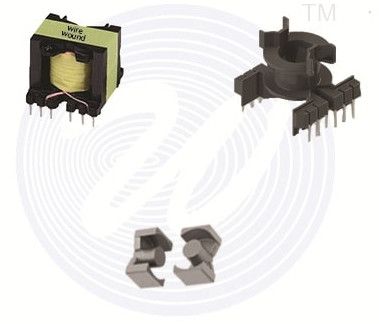

    • 2535188

    Ferrite Core PQ Series SMPS Transformers, Packaging Type : Box

    ₹ 20 - ₹ 60 / Piece
    Get Latest Price
    • MOQ50 Piece
    • MaterialFerrite Core
    • Packaging TypeBox
    • UsagePower Conversion
    • Leakage Inductance3%
    • Supply TypeManufacturer, Supplier
    • Preferred Buyer Location India only
    View More Details
    Send Enquiry

    Company Information

    Wirewound Electronics Private Limitedverified-icon
    location Khadakwasla, Pune, Maharashtra
    View Number
    • calendar Member Since 12 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 27AADCW8586F1ZS

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Leakage Inductance3%
    • Dielectric Strength1.5 KV
    • Number Of FlowerSMPS Transformers
    • MaterialFerrite Core
    • Packaging TypeBox
    • UsagePower Conversion
    • Primary Inductance+/-5% to +/-10%
    • PQ SeriesPQ20X20 PQ26X20 PQ26X25 PQ32X20 PQ32X25 PQ32X30 PQ35X35 PQ40X40

    Product Description


    Features

    • Inductor with Single winding as per user design
    • Multiple section chokes are also available
    • Transformer with multiple windings and multiple wires as per user design
    • Primary inductance standard +/-10%, also available +/-5% on request
    • Leakage inductance below 3% of primary inductance
    • Dielectric strength Primary to Secondary min 1.5KV


    Applications

    • Chokes for EMI applications
    • Transformer for LED drivers
    • Transformer for SMPS power supply


    PQ‑Series Core Sizes:

    • PQ20X20
    • PQ26X20
    • PQ26X25
    • PQ32X20
    • PQ32X25
    • PQ32X30
    • PQ35X35
    • PQ40X40


    Interested in this product? Ask for more details & Latest Price from seller
    Send Enquiry

    Product Images

    • PQ Series SMPS Transformers
    • PQ Series SMPS Transformers
    • PQ Series SMPS Transformers
    • PQ Series SMPS Transformers
