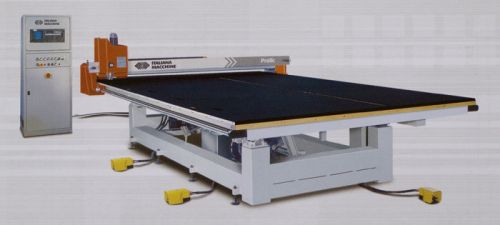

PRATIC 6000 SAR

Maximum glass dimensions : 6000 x 3200 mm
Workable thicknesses : 3 ^-15 mm
Positionning accuracy : ± 0,2 mm
Shape incision accuracy : ± 0,5 mm
Maximum speed (X,Y) : 100mt./min
Tilting operation time : 50 sec
Transversal break-out bar : n° 2
Longiiudinal break-out bar : n° 1
X,Y automatic alignment stops : n° 3 + 1
Glass loading support pads : n° 5
Air cushion blower : n° 2
Compressed air connection : 1/4 gas - 7 ± 8 bar
Standard voltage : 380 - 400V
Standard frequency : 50 Hz
Installed power : 10 Kw
Overall max.dimensions : 7300 x 4000x1600 mm
Work table height : 940 ± 20 mm
Total weight : 4000 Kg
Special tensions : 220-240-415-440-480-550 V
Special frequency : 60 Hz
