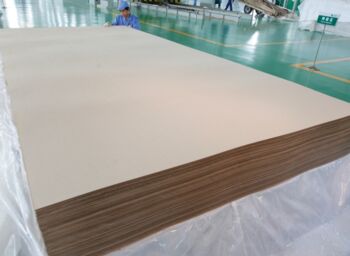

Pre-compressed Pressboard for capacitors

Get Latest Price

MOQ1 Ton
Materialunbleached coniferous wood pulp
Applicationbase materials for electrical insulation components used in oil-immersed transformers, capacitors, r
Tensile StrengthMD min 100 MPa, CMD min 75 MPa
Voltage gradeupto 1000kv
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Huisheng Group Co Ltd

Weifang

View Number

Member Since 8 Years
Nature of Business Manufacturer
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Materialunbleached coniferous wood pulp
Applicationbase materials for electrical insulation components used in oil-immersed transformers, capacitors, r
Tensile StrengthMD min 100 MPa, CMD min 75 MPa
ElongationMD min 3.5% CMD min 4.5%
Voltage gradeupto 1000kv
AppearanceNatural-color, wire marks, uncalendered
Thermal classA (105℃)
Sheet Sizeany size within 6400*3200 is available
Thickness0.8-8.0 mm
Dielectric Strength in Oilmin 45 KV/mm
Quality StandardIEC 60641 type B3.1A
Density1.0 -1.3 g/cm3

Huisheng Transformer Pressboard is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in power transmission and transformation equipments such as oil-filled transformers, reactors, and inductors.

Additional Information

Payment Terms L/CT/T
Port of DispatchQingdao, China
Packaging DetailsPlastic film for water proof, and pallet provided, 1 ton per pallet.
Delivery Time15-30 days
