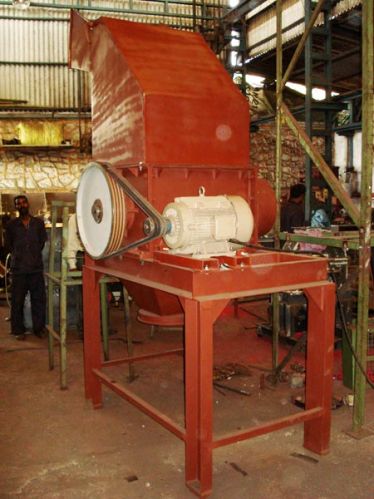

Pre Crusher

We are clearly reckoned amongst foremost Crusher Machine manufacturers and suppliers based in India. Our pre crusher mill is a cost effective unit for medium solid and lumpy materials. Our pre crusher saves operation time and gives superior output. These par excellence pre crushers are priced very reasonably by us.
Pre Crusher
Ideally Design for NO-maintanance, Easy Operation & Higher Output
USEFUL FOR INDUSTRIES

Dyesstuff Pigment & colour, Chemical, Foodstuff, Agro, Ayurveda, Pharmaceutical , Cosmetic, Ayurveda, Pharmaceutical, Dehydrated Fruit & Vegetable, Tea, Cosmetic, Glass, Plastic, Bakelite & Resin, Mineral Ceramic, Coconut Shell, Cattle Feed, salt, -Snuff & Many Other..

CHARACTERISTICS
Pre Crusher is a economical unit designed for medium, hard & lumpy material for time saving operation & greater output.
It will ideally reduce irregularly shaped lumps of soft to medium even slightly damp in nature, to smaller sized lumps by inward - opposite rotating cam shaft with replaceable cams crush the material on the Stotted grate.
Pre-Crushers are recommed to crush materials containing small percentage of lumps or agglomerates into uniform coarser material. Generally for lighter duties like mounting in-line with secondary grinding mill or de-agglomeration applications.
Pre - Crusher is not suitable for hard materials like wood, stones, metals, ores etc. Pre - Crusher is subjected to rigid Final inspection and actual Crushing tests at our Experimental Station before it is delivered to the Stores for despatch. Crushing Tests with your materials can also be carried out without obligation, to testing the suitability of the Crusher for your satisfaction.
APPLICATION :

• PERMISSIBLE FEED SIZE : ANY IRREGULAR SIZE UPTO 200 MM.
• OUTPUT SIZE ACHIVEABLE : UP TO 3 TO 25 MM
• PERMISSIBLE HARDNESS : UP TO 3 MOH'S SCALE
• PERMISSIBLE BRITTLENESS : MEDIUM TO HIGH
• PERMISSIBLE MOISTURE : UP TO 10%

STANDARD SUPPLY
Pre - Crusher complete with feed Hopper, set of Light or Heavy duty jaws, slotted screen, main shaft assembly and 'V' - pulley for m/c.
NECESSARY BUT OPTIONAL SUPPLY (At Extra Cost)

• Mounting Accessories : M.S. mounting structural frame without legs / M.S. stand complete as per our standard supply with discharge outlet, facility to mount m and motor, set of cross type slide rails, Set of V-Belts, V-Pulley for Motor and safety guard for drive.

• Electrical Accessories : 1 No. Electric motor for main drive, suitable starter D.O.L./srat Delta type semi-automatic & Ampere meter for load indication.
