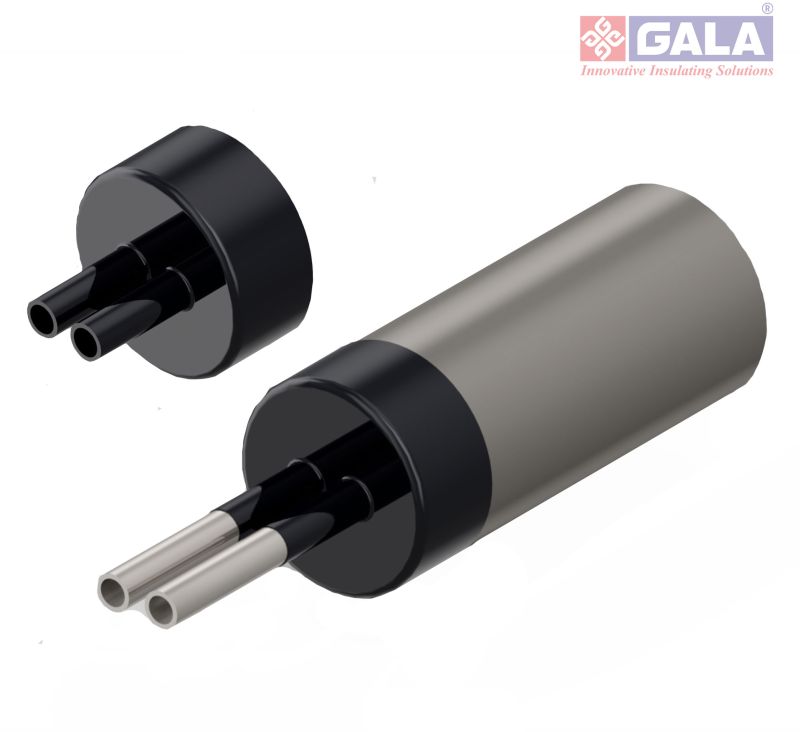

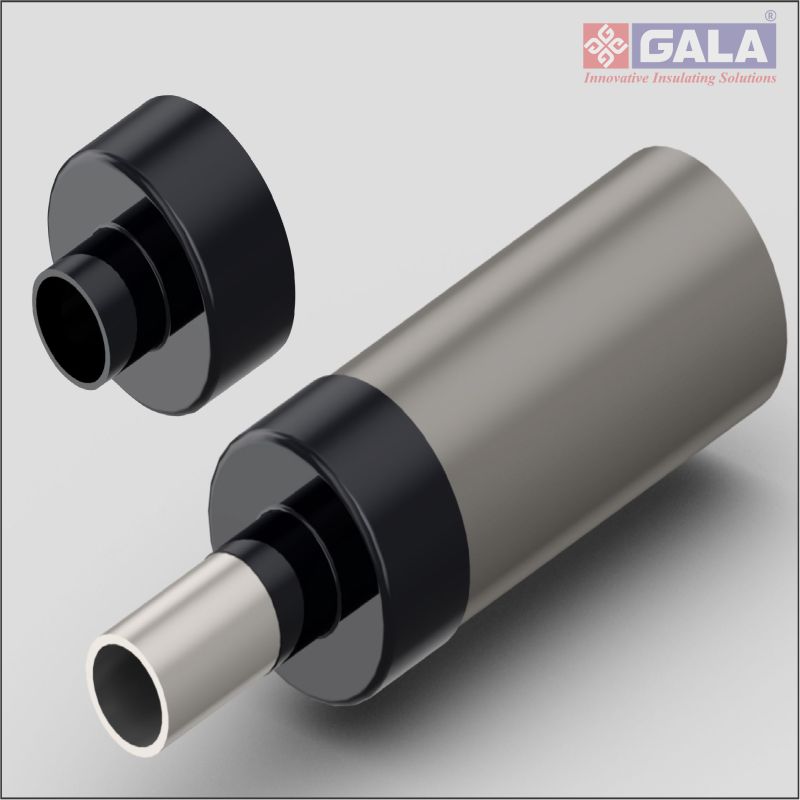

We offer a high-quality Pre-Insulated Pipe Sealing Cap by Gala, designed to seal pre-insulated pipes effectively. Made of durable rubber material in India, this new sealing cap comes in black packaging. With a temperature resistance of up to 100°C and waterproof feature, it fits various pipe diameters for versatile applications. Ideal for manufacturers, exporters, and suppliers, this product ensures a secure seal and reliable performance. Enhance your piping systems with this reliable sealing cap from Gala, the trusted brand for quality pipe accessories.
| PROPERTIES | VALUE | STANDARD |
| Tensile Strength | 18 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 450% (min.) | ASTM D638 |
| Water Absorption | 0.1% (max.) | ASTM D570 |
| Hardness | 45 Shore D (Min.) | ASTM D2240 |
| Accelerated Ageing | (150°C for 168 hrs.) | ASTM D2671 |
| Ultimate Elongation | 320% (min.) | ASTM D638 |
| Low Temp. Flexibility on 25mm Mandrel (-40°C for 4 hrs.) | No Cracking | ASTM D3111 |
| Continuous Temperature Limit | -40°C to 125°C | IEC 216 |
| Adherence to the casing | 100 (max.) (@23°C 9N/cm) | Annex B |
| Adherence to the coating (3lp) | 100 (max.) (@23°C 9N/cm) | Annex B |
| Shear Resistance (Adhesive) | 7N/cm² (min.) @23°C (10mm/min.) | DIN 30672 |
| Softening Point (Adhesive) | 130°C (min.) | ASTM E28 |
| Adhesion / Peel Strength | 14N/cm (min.) | ISO 21809-3 |
| Code | Ds | Df | ds | df | Ls | Lf | Is | If | Tcf | Tbf | Mib | Mic |
| Min. | Max. | Min. | Max. | Min. | Min. | Min. | Min. | ±10% | ±10% | |||
| GPPC1-1030-1 | 10 | 15 | 6 | 10 | 40 | 70 | 20 | 87 | 0.8 | 0.8 | 3 | 15 |
| GPPC1-2460-1 | 24 | 35 | 15 | 24 | 75 | 87 | 40 | 115 | 1 | 1 | 3.5 | 15 |
| GPPC1-2460-2 | 24 | 35 | 15 | 24 | 87 | 87 | 40 | 115 | 1 | 1 | 3.5 | 15 |
| GPPC1-2475-1 | 24 | 35 | 15 | 24 | 87 | 115 | 40 | 145 | 1 | 1 | 3.5 | 15 |
| GPPC1-2475-2 | 24 | 35 | 15 | 24 | 115 | 115 | 40 | 145 | 1 | 1 | 3.5 | 15 |
| GPPC1-2490-1 | 24 | 35 | 15 | 24 | 145 | 145 | 40 | 170 | 1 | 1 | 3.5 | 15 |
| GPPC1-2490-2 | 24 | 35 | 15 | 24 | 170 | 170 | 40 | 200 | 1 | 1 | 3.5 | 15 |
| GPPC1-2475-3 | 24 | 35 | 15 | 24 | 200 | 200 | 40 | 225 | 1 | 1 | 3.5 | 15 |
| GPPC1-3090-1 | 30 | 45 | 20 | 30 | 115 | 145 | 50 | 170 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-3090-2 | 30 | 45 | 20 | 30 | 145 | 145 | 50 | 170 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-3090-3 | 30 | 45 | 20 | 30 | 170 | 170 | 50 | 200 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-3090-4 | 30 | 45 | 20 | 30 | 200 | 200 | 50 | 225 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-4090-1 | 40 | 60 | 25 | 40 | 145 | 145 | 65 | 200 | 1.3 | 1.3 | 3.5 | 15 |
| GPPC1-4090-2 | 40 | 60 | 25 | 40 | 170 | 170 | 65 | 225 | 1.3 | 1.3 | 3.5 | 15 |
| GPPC1-4090-3 | 40 | 60 | 25 | 40 | 200 | 200 | 65 | 250 | 1.3 | 1.3 | 3.5 | 15 |
| GPPC1-225300 | 50 | 75 | 30 | 50 | 225 | 225 | 100 | 300 | 1.4 | 1.4 | 3.6 | 15 |
| PROPERTIES | VALUE | STANDARD |
| Tensile Strength | 18 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 450% (min.) | ASTM D638 |
| Water Absorption | 0.1% (max.) | ASTM D570 |
| Hardness | 45 Shore D (Min.) | ASTM D2240 |
| Accelerated Ageing | (150°C for 168 hrs.) | ASTM D2671 |
| Ultimate Elongation | 320% (min.) | ASTM D638 |
| Low Temp. Flexibility on 25mm Mandrel (-40°C for 4 hrs.) | No Cracking | ASTM D3111 |
| Continuous Temperature Limit | -40°C to 125°C | IEC 216 |
| Adherence to the casing | 100 (max.) (@23°C 9N/cm) | Annex B |
| Adherence to the coating (3lp) | 100 (max.) (@23°C 9N/cm) | Annex B |
| Shear Resistance (Adhesive) | 7N/cm² (min.) @23°C (10mm/min.) | DIN 30672 |
| Softening Point (Adhesive) | 130°C (min.) | ASTM E28 |
| Adhesion / Peel Strength | 14N/cm (min.) | ISO 21809-3
|
