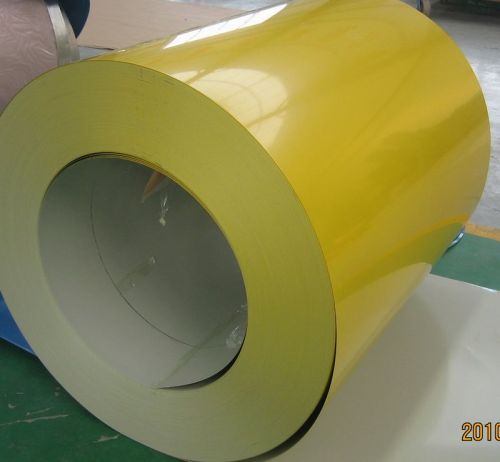

Pre-painted Steel Coils, Thickness (mm) : 0.15mm-3.0mm

We are offering pre-painted steel coils.
Processing of prepainted steel coil
the base material for processing prepainted steel coil is galvanized steel coil. So usually, in the specifications of the prepainted steel coil, the base material’s specifications are also needed.
Standard of prepainted steel coil
the standard of galvanized steel coils varies according to different countries, but which is major used as per en,jis,gb and astm.
Steel grade of prepainted steel coil
standard of galvanized steel coils as per en 10169, then the steel grade of prepainted steel coils can be steel grade of galvanized steel coils+zinc coating quality.
Standard of galvanized steel coils as per jis g3312, then the steel grade of galvanized steel coils can be cgcc, cgch, cgcd etc.
Applications of prepainted steel coil
prepainted steel coil is mainly used for the automotive industry, household appliances, furniture, containers, cooking utensils, ship interiors, and modern architecture in the field of garden design, large industrial plants, majorairports, major sports venues, pre-heat sandwich panel and so on. Used in construction of the outdoor roof, roof, structure,terrace, panel, water, liu zi bay windows, window frames, doors, garage doors, shuter doors, kiosks, shutters, guard room, shower enclosure, street waititng roof(pavilion), cold storage, etc; indoor applied door, partitions, door frames, light steel structure house, sliding doors, screens, ceilings, bathrooms, interior elevator lobby, stairs ventilation channel, communication channels,etc
name 　　　　prepainted galvanized steel coils
standard jisg3312/astm/en10169/gbt12754
material hot-dipped galvanized steel coil
surface coating type pe,smp,hdp,pvdf
id 508mm/610mm
coil weight 3-8mt
thickness 0.18-3.0mm
width 600mm-1250mm
zinc coating 60-275g/m2
tensile strength 270-500n/mm2
elongation 30%min
color all colors according to ral color system
packing as per client’s requirement
