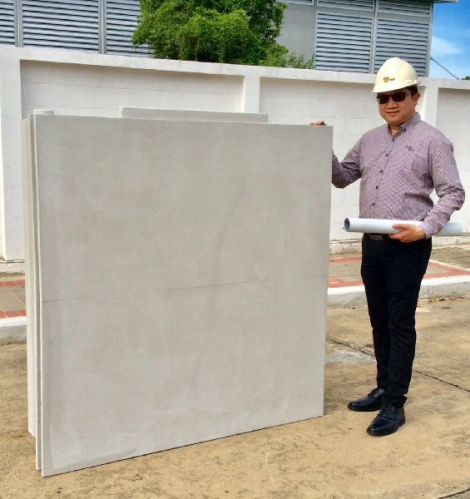

Precast Reinforced Concrete Heavy Duty Retaining Wall

Precast infrastructure relates earth and water retaining wall. Diverse usage such as: Earth retaining wall, Water Retaining Wall. Small dam, Reservoir. Weir, Flood wall. Sea wall. Boundary wall. Security wall. Transport system &High speed trains. Prison wall. Industrial and Housing estate wall.
The advantage: Free standing and rapid installation by crane. Save time,labor and budget,less of construction equipments compared with Reinforced Concrete cast-in-situ. Horizontal rebars inserted thru the fins and bonded with vertical rebars during installation. Could be moved these molds to cast near work site to reduced transportation costs.
Characteristics: These innovation products Phiproei Blog having two types of width .First Type PCRW 1 Type A.dimensions length 150cm. Height 150cm. Width 65cm. Volume of concrete = 0.60 cu.m.Weight 1444 kg. Compressive strength fc’= 280 ksc. Cyl.(changeable) Placing Reinforcing rebars in three ways. Second Type PRCW. 1 Type B same dimensions except width = 50cm. Volume = 0.50 cu.m. Weight 1200 kg. Same strength.placing Reinforcing rebars in one way.
