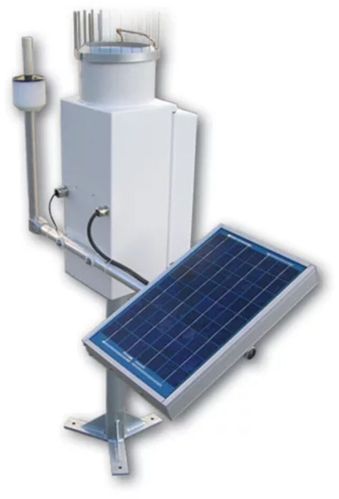

Contact SupplierThe SEBA rain gauge system RG 100 offers a compact design
which combines the protection housing and funnel system
into one unit.
The special aluminum lockable protection housing can contain
the tipping bucket, data logger (UnilogLight, UnilogCom),
modem (GSM/GPRS, satellite), power supply and if desired a
collecting bottle.
Collecting Area: 200 cm2, 400 cm2 or 500 cm2
Recording
Time:
depends on selected data logger type
(UnilogLight, UnilogCom)
Output: Impulse, potential free
Resolution: 1 impulse = 0.1 mm precipitation or
1 impulse = 0.2 mm precipitation
Collecting
bottle:
5 liters, plastic material
Funnel: (DIN 58667) plastic, 200 cm³ = 10 mm
precipitation
Dimensions: (height, width, depth) 620 x 225 x 285 mm
Weight: 13 kg
