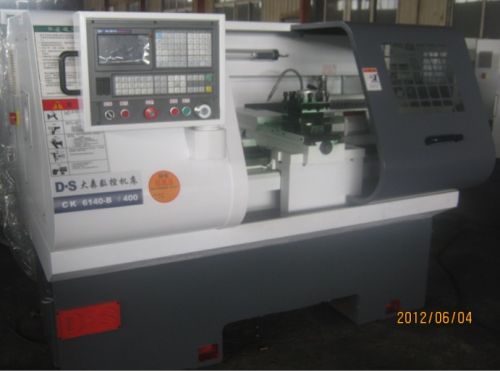

Precise CNC Machine

We are offering precise cnc machine.ck6140 is a high cost-effective processing product. We have always committed to improve its behavior and quality since it was developed.
the machine is widely used for the mass machining of the auto parts, motorcycle parts, valves and other parts and highly praised by our customers.
the spindle is supported by high precision roller bearings and able to turn precisely.
this machine offers good stability because of its integral bed foot.
made of cast iron, the ultrasonic frequency quenched guide way has a good wear-resistance and working accuracy.
we can provide manual three claw chuck, hydraulic chuck and hydraulic tailstock at user's request.
items units specifications
maximum swing over bed mm φ400
maximum swing over slide mm φ200
maximum machining length mm 600
spindle head type gb59001 a2-6
spindle taper hole mm φ58
spindle speed range r/min 50-1400
main motor powder kw 7.5
grip size / chuck size mm 250
x-axis travel mm 220
rapid traverse speed on x/z-axis mm/min 伺服（servo）6000/8000
turret type electric knife
tool size mm 25×25
tailstock sleeve diameter / travel mm φ60/120
internal of tailstock sleeve mt4
overall dimensions（l×w×h） mm 1930×1180×1510
weight kg 1900.
