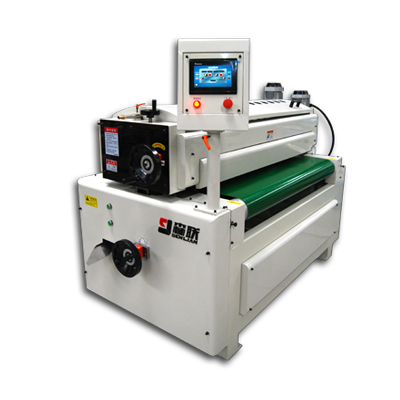

Mechanical Precise Single Roller Coating Machine

Single roller coating machine
function:
it applies the single rubber roller and stainless steel roller to cover the liquid paint on board circularly which without any paint waste and environmentally friendly. It can coat the film even and thin, almost from 0.001mm to 0.003mm once.
• application filed:
furniture, door, wardrobe, cupboard, floor, decoration, building insulation, etc.
• application board:
solid wood board, ply, mdf, mfc, pb, glass, pvc, marble, calcium silicate board, cement fiber board,
mineral wool board, mgo board, aluminium sheet, etc.
• application paint:
uv, pu, pe, water paint, fluorocarbon paint, glue, special paint, etc.
technical parameters
optional working width 600mm800mm1300mm
max working thickness 100mm
min working length 300mm
working speed 0-25mmin
paint pump 0.6mpa, 10l,
stainless steel roller φ200mm
rubber roller epdm, φ205mm, h45 degreesm
full power 7.12kw 380v
estimated weight 850kg950kg1500kg
overall dimensions 1250*1700*1600mm 1250*1900*1600mm
1250*2300*1600mm
main parts
electric motor bmemb
frequency converter shihlin
main bearing nsk from japan
conveyor ammerraal from holland
paint pump vacuum diaphragm pump
electrical appliance chint
control system intelligent control system, lcd screen
optional rollers for different process epdm roller, polyurethane rubber roller, silicone rubber roller, laser rubber roller, sponge rubber roller, corrugated roller
