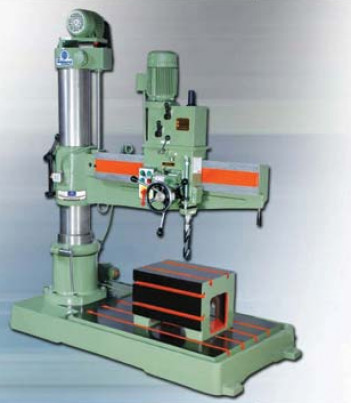

Precision 40mm Cap All Gear Radial

₹ 3.60 Lakh / Piece

MOQ1 Piece(s)
Number Of FlowerRadial Drilling Machine
Distance From Column To SpindleMax. 1200 Mm, Min. 380 Mm
Diameter Of Column210 Mm
Box Table Dimensions510x380x355 Mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 13 Years
Nature of Business Manufacturer
GST No. 24AAHFS3876K1ZQ

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerRadial Drilling Machine
Power Feed Range0.20-0.10 Mm/Rev
Horizontal Movement Of Drilling Head630 Mm
Distance From Column To SpindleMax. 1200 Mm, Min. 380 Mm
Number Of Spindle Speed8
Vertical Power Movement Of Arm750 Mm
Drill Capacity40 Mm
Range Of Spindle Speed90 To 1000 RPM
Distance From Base To SpindleMax. 1180 Mm, Min. 500 Mm
Arm Elevating Motor Power0.75 HP, 1400 KW/RPM
Box Table Dimensions510x380x355 Mm
Drilling RadiusMax. 1305 Mm, Min. 485 Mm
Base Plate Dimensions1800x900x180 Mm
Spindle Travel220 Mm
Diameter Of Column210 Mm
Spindle NoseMT 4
Drilling Motor Power1.5 HP, 1400 KW/RPM

Universal Radial Drilling Machine SMT-40/1200DC Technical Specification : Capacity : M.S. C.I. Drill Capacity 40 mm 40 mm Drill Head : 1. Spindle nose MT 4 2. Spindle Travel 220 3. No. of Spindle Speed 8 4. Range of Spindle Speed 90 to 1000RPM 5. Number of Power (2) 6. Power feed Range 0.20-0.10 mm / Rev. Working Range : 1. Drilling Radius Max./Min. mm. 1305-485 2. Distance from column to Spindle Max./Min. mm. 1200-380 3. Box Table LX WXH mm. 510x380x355 4. Distance from Base to Spindle Max./Min mm. 1180-500 5. Diameter of Column mm. 210 6. Vertical Power movement of Arm mm. 750 7. Horizontal Movement of Drilling Head 630 Base Plate : 1. L x W x H mm. 1800x900x180 mm 2. Working Surface mm. 1200x750 mm 3. No. of T-Slots mm. 4/16 mm Power : H.P. V. Belt Drilling Motor 1.5 1400KW/RPM 1.5 / 2800 KW/RPM Arm Elevating Motor 0.75 1400KW/RPM Shipping Size Approx LxWxH 1900x1000x2200
