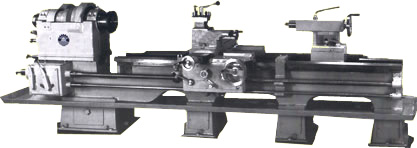

Precision Belt Driven Lathes

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features : - Bed is made from closed grain cast iron. Grade IS-20 Hardened & Ground. - Spindle is made form alloy steel & its Hardened & Ground.- Apron is fully oil bath.- Gear & Shaft of Norton gear box are made from alloy Steel & are toughened.- All wearing surfaces of rotating parts are made of gun metal.- Bed casting single piece upto 32'.- Spindle hollow available 52mm to 200mm.

View More Details

Send Enquiry

Company Information

KAD STEEL ROLLING MILLS

Dariapur, Ahmedabad, Gujarat

View Number

Member Since 21 Years
Nature of Business Retailer
Year of Establishment 1964

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

SPECIFICATIONS/MODEL	H	EH	XH	XXH
Height of Centre	255	305	380	450
Width of Bed	325	380	455	555
Swing over Cross Slide	290	400	490	600
Swing over Bed	480	580	710	840
Swing in Gap	785	885	1150	1300
Width of Gap in front
of Face Plate	200	200	300	300
Spindle Hollow	52	65	80	104
Spindle Speeds Nos./Range(rpm in G.P.)
Brass type	8/30-550	8/30-550	8/30-550	8/30-550
Bearing type	8/40-700	8/40-700	8/40-400	8/40-400
Type of Drive(Std.)	Flat belt	Flat Belt	Flat Belt	"V" Belet
Optional	V-Belt	V-Belt	V-Belt	-
Section	C	C	C	C
Lead Screw
Dia/Thread(TPI)	38.1/4	38/1.4	50/8.2	50/8.2
Full Norton: Number of Thread/Range
Metric	17/0.5-15	17/0.5-15	19/1-30	19/1-30
Inch	48/2-60	48/2-60	41/1-30	41/1-30
Auto Feeds: (in full Norton)
Longitudinal(mm/rev)	0.065 to 2.0	0.065 to 2.0	0.078 to 2.340	o.o78 to 2.340
Cross (mm/rev)	0.015 to 0.048	0.015 to 0.048	0.015 to 0.048	0.015 to 0.048
Tailstock Ram Dia	50.8	63.5	76.2	101.6
Morse Taper in Ram	MT-4	MT-4	MT-5	MT-6
Ram Travel	200	200	250	250
Electricals required	3 HP	3 HP	5 HP	5 HP
RPM	1440	1440	1440	1440
Tool Shank	25	25	32	32
