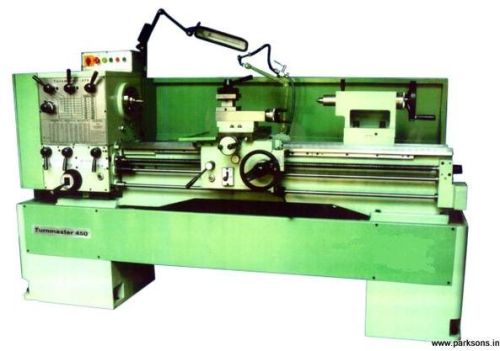

    Precision Centre Lathe

    Precision Centre Lathe

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Description: All Geared Precision Centre Lathe Graded Casting with Hardened & Ground Guide ways Hardened & Ground Spindle and Gears in Headstock Induction hardened & Toughened Gears in....
    View More Details
    Send Enquiry

    Company Information

    Parksons Engineering Corporation
    location Fort, Mumbai, Maharashtra
    View Number
    • calendar Member Since 9 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Description: All Geared Precision Centre Lathe

    • Graded Casting with Hardened & Ground Guide ways
    • Hardened & Ground Spindle and Gears in Headstock
    • Induction hardened & Toughened Gears in Feedbox
    • American Nose Spindle is standard and Cam lock Spindle Nose is optional
    • Double screw apron totally enclosed in oil bath with overload tripping arrangement

    Accuracy: As per IS Standard 1878 (Part-I)

    • Work piece on Chuck (Turning)-Roundness of 0.01mm taper near headstock
    • Work piece between Centers (Facing) Flatness of 0.02mm/ 300mm length in concave direction



    Applications:

    • Provides high precision machining for turning, facing, drilling, taper turning & boring operations
    • Useful in laboratories, sample making, R&D divisions and tool making



    Accessories:



    Self Centering Chuck, Independent Jaws Chuck, Steady Rest, Follow Rest, Revolving Center, Gap Bed, Digital Read Out, Taper Turning Attachment, Grinding Attachment, Electromagnetic Footbrake, Milling Attachment


    ModelTM-350TM-400TM-450
    Center Height175200225
    Swing Over Bed350 400 450
    Swing Over Cross Slide200250 280
    Distance between centers 8001000 / 1500 1250 / 1650 /2000
    Spindle Bore40 55 55
    Speed Range71-1800 RPM71-1600 RPM 40-2000 RPM
    Longitudinal feed range0.045-0.63 0.045-0.63 0.04-2.24
    Transverse feed range 0.015-0.210.015-0.21 0.012-0.7
    Main Motor 2.2kW3.7kW 5.5kW

    ModelTM-350TM-400TM-450
    Center Height175200225
    Swing Over Bed350 400 450
    Swing Over Cross Slide200250 280
    Distance between centers 8001000 / 1500 1250 / 1650 /2000
    Spindle Bore40 55 55
    Speed Range71-1800 RPM71-1600 RPM 40-2000 RPM
    Longitudinal feed range0.045-0.63 0.045-0.63 0.04-2.24
    Transverse feed range 0.015-0.210.015-0.21 0.012-0.7
    Main Motor 2.2kW3.7kW 5.5kW
