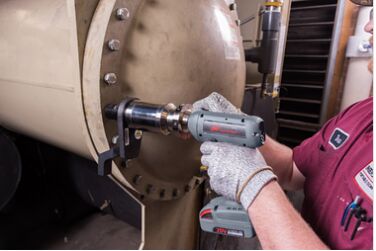

Precision Cordless Torque Multiplier Tool

The innovative QX Series Cordless Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. The CLASS 1 DIVISION 2 CERTIFIED QX Series Haz Tool takes the QX series where it couldn't go before. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.
FEATURES
Closed-loop transducer delivers a torque accuracy of +- 5%
Integrated Norbar® gearbox provides premium quality and accuracy
Brushless Motor offers maximum durability
Multi-function display module with cycle status alert and audible alarm offers instant feedback and easy setup
360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
Standard or custom reaction arms available
Optional wireless communication for process control with IO and data collections (USB connection standard)
Ingersoll Rand’s ICS software provides operators the ability to access and program basic fastening strategies, as well as more advanced options to adapt to the most complicated bolting applications
Class 1 Division 2 Haz Tool option available
Specifications
CLASS 1 DIVISION 2 CERTIFIED
Model: QXX2PT500VNPS12
Item: Haz Tool
Torque Range: 74-369 ft.lbs. (100-500 Nm)
Free Speed: 18
Weight: 8 lbs. (3.62 kg)
Length: 14.69 (373)
Drive Size: 34"
Voltage: 20V
Communication: Wireless Enabled
For more information, a formal quotation, or tech support on the Ingersoll Rand QX Tool Series please call Zampini Industrial Group today at 1-800-353-4676 and our engineers will be happy to assist.
