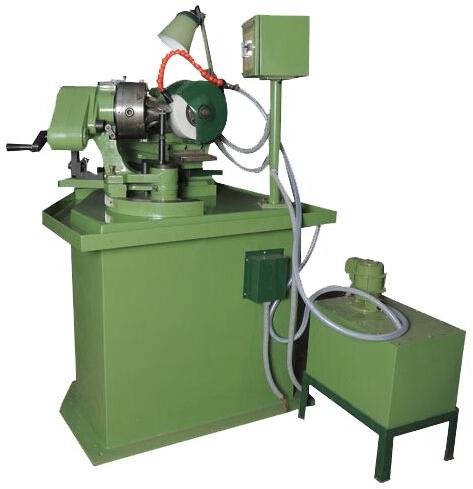

Precision Drill Grinders

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Manu"Model DG-40, DG-50 are Heavy Duty Drill Grinders for Precisions Grinding & Sharpening of Shank type cutting tools like Drill from 3 mm to 50 mm, Slot Drill, Pilot Drills, Countersink Drills, Multistep Drills, Core Drills, End-mills (2 Flutes only). taps etc. The machines are simple to operate, if can grind conventional points in one operation giving repeatable results. Specially available for carbide drills at extra cost.

View More Details

Send Enquiry

Company Information

Manu Engineering Works

Amraiwadi, Ahmedabad, Gujarat

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Specifications	DG-40	DG-50	DG-80
Capacity	3mm to 40 mm	5mm to 50 mm	15mm to 80 mm
Point Angles	40°to 180°	40°to 180°	90°to 180°
Chuck	6 Jaw Precision	6 Jaw Precision	6 Jaw Precision
Grinding Head Motor	0.75 kW(1HP) 2800 RPM	0.75 kW(1HP) 2800 RPM	0.75kW (1 - 1/2 HP) at 2800 RPM
Power Supply	440 V AC, 3 Phase, 50 Cys. AC Supply (230 V, 1 Phase, 50 Cys. AC Can be supplied on request)
Grinding Wheel Cup Type	Dia. x width x Bore 200 x 32 x 31.75 mm	Dia. x width x Bore 200 x 32 x 31.75 mm	Dia x Width x Bore is 200x65x31.75 MM (ROS - 110x30 )
Web Thinning Wheel (Disc Type)	174 x 31.75 mm Grade A-46	174 x 31.75 mm Grade A-46	174 x 2 0 mm
Dimensions	4.5 ft. x 4.5 ft. x 5 ft.	4.5 ft. x 4.5 ft. x 5 ft.	1050x900x1400 MM approx
Weight	Nett : 275 Kg (Approx)	Nett : 350 Kg (Approx)	Nett 400 KGS approx
