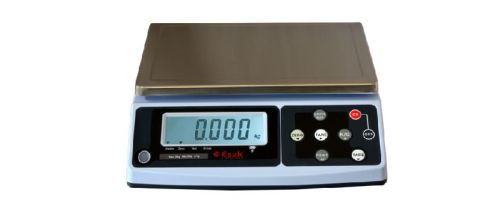

Precision - DS Series

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

E.g.kantawalla Pvt. Ltd.

Kharadi, Pune, Maharashtra

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

This top of the line precision balances has been known for delivering accurate weighing results over and over again. A large 30 mm high LCD display with backlight, applications for parts counting, with built in Battery Backup, Auto Sleep function, Anti Slip adjustable feet, level bubble and Colour coded and sealed keypad makes it a true winner in its class. Recommend by customers for its simple to use design.

Standard Features

Tare Function
Counting Function
Zero Tracking
Check Weighing Function
Hold Function & Peak Hold Function
In-built Battery Charger*
Weight Stable Indication
Auto Sleep Function To Save Battery
Over-Load Protection & Indication
Battery Power Indication & Low Battery Indication
In Built RS 232 For Interface With Computer
Key Board : 8 Tactile Keys Color Coded Key Board
Battery Back-up : 6V/4.5Ah – 48 Hours of Operations

*Note: Battery will not be supplied with the scale

Range ModelCapacityAccuracy

DS-220	3 kg	100 mg
DS-220	6 kg	200 mg
DS-220	15 kg	500 mg
DS-220	30 kg	1 g

HSN Code: 8423 8100
Resolution: 1/30000
Platform Size: 315 x 220 mm
MOC Housing: ABS Plastic
MOC Pan: Stainless Steel 304

Technical Specifications

Model	DS
Description	Digital Weighing Precision Table Top Scale
Physical Dimension	330 x 345 x 115 mm (±5 mm)
Net Weight	Approx 3.5 Kg (Without Battery)
Weight Sensor	Aluminum Loadcell–IP 65
Processor	8 Bit Arm Processor
Key Board	8 Tactile Keys
Display Type	LCD with Symbols & MOON Backlight
No. Of Display Window	Display (Front & Back Display)
Display Size	30 mm - Front Display & 20mm - Back Display
Repeatability	±1d
Linearity	±1dAt Half Load & ±2d At Full Load
Creep	±2d(for 3 minutes with full capacity)
Calibration Method	External Calibration Software Based
Power Connector	3 Pin Mains Cord (5A)
Power Supply	150 V to 230 V (AC)
Frequency	50 Hz
Power Consumption	< 2 Watt Approx.
Operating Temperature	0°C to 45°C
Operating Humidity	95% RH Max (Non–Condensing)
Battery Capacity	6V / 4.5 AH
Over-load	100% Of Scale Capacity +9e
Safe-load	150% Of Scale Capacity
Stabalisation Time	< 3s
Internal Resolution	20 Bit ADC - 10,00,000+ counts
Sampling Rate	20 Samples / Sec
