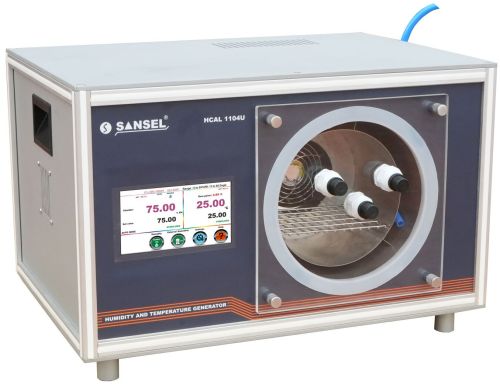

Model : HCAL 1104U – v2 Display: 7” True colour TFT LCD Display with Touch screen Control Range : 5 to 60°C / 3 to 95 % RH* Dew point Temperature range (psychometric calculated) :....
Display: 7” True colour TFT LCD Display with Touch screen
Control Range : 5 to 60°C / 3 to 95 % RH*
Dew point Temperature range (psychometric calculated) : -30°C to 45°C
Psychometric calculated indication : Dew / Frost point ( Dp / Fp ) Wet Bulb Temperature ( Tw ) Vapour partial pressure ( E ) Vapour Saturation pressure ( Ew ) Mixing ratio by weight (dry) ( g / kg ) Enthalpy ( H ) ( KJ / kg ) Specific Humidity (moisture) ( g / kg ) Absolute Humidity (moisture) ( g / m³ ) Volume mixing ratio (dry) ( ppm )
Calculation method : WMO method
Resolution : 0.01 °C / 0.01% RH
Display stability : Better than ± 0.03 °C / ± 0.15% RH
Test sensor insert port: Inter changeable Acrylic door is provided on front side of the chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos
External Humidifier Water tank capacity: 6 litres (approx.)(NOTE : 3 liter filling is enough for our application)
Humidifier Liquid: Distilled water
Humidifying Time:2 %RH / sec (50 to 90 % RH)
Dehumidifying Time: 6 %RH / sec (50 to 10 % RH)
Test chamber area: 230mm DIA x 170mm D (Approx)
Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption: 1000 VA
Construction: Inner chamber SS 310 / outer MS powder coating
Overall Dimension: 436mm L x 676mm W x 368mm H (Approx.)
Weight: 44 kg (without Accessories) + 6 kg (standard accessories) (Approx.)
Additional Information
Delivery Time28 days
