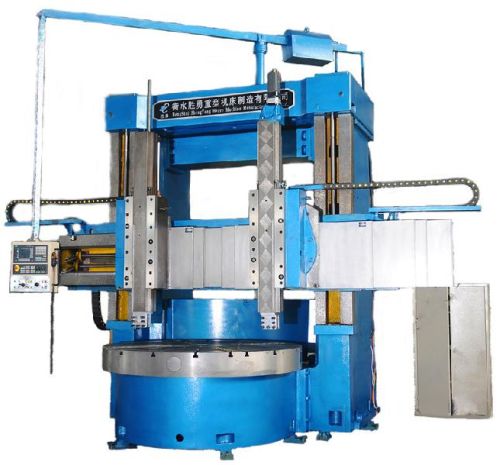

Precision Large CNC Vertical Borers Machine

Precision Large CNC Vertical Borers machine is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept  and equipping with domestic and foreign advanced features. It can perform finely and roughly turning cylinder and inner holes, inner and outer taper, surface, and grooving.
Feature of Precision Large CNC Vertical Borers machine
1 Compact and reliable structure
2 High stability
3 High rigidity
4 Low investment cost
Technical specification of Precision Large CNC Vertical Borers machine CK5240
1 Maximum turning diameter 4000 mm
2 Maximum Height of workpiece 1600200025003000 mm
3 Maximum Weight of workpiece 102032 t
4 Table diameter 3150 mm
5 Speed range of table 2-63 rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 10001250 mm
8 Horizontal travel of tool post 2150 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 5575
11 Machine weight(about) 42-58t
12 Overall dimensions(L×W×H) 8010×4400×4680mm
8010×4400×5080mm
8010×4400×5600mm
