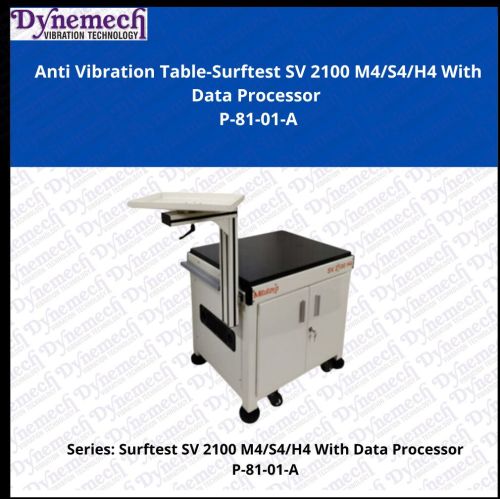

Precision Measuring Metrology Instrument Anti Vibration Tables for SV 2100 M4/S4/H4, P-81-01-A

1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!) for placing data processor.
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Leveling Ball, Spanner 24/27
12. Powder Coat, structure, side sheets and doors RAL 9002
13. Instrument sticker
14. Overall dimensions: L 770 X B 620 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box

Note- GST and Freight Charges are not included.
