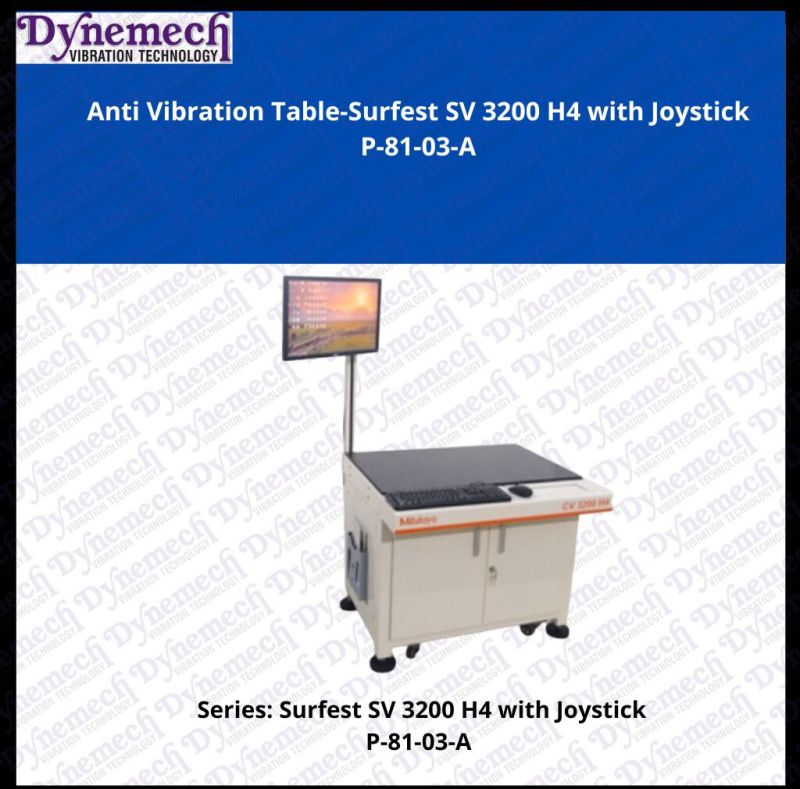

Precision Measuring Metrology Instrument Anti Vibration Tables for SV 3200 H4, P-81-03-A

₹ 84,237.50 / Piece

MaterialIS 2062(Low Carbon Steel)
Brand NameDynemech
ShapeRectangle
ConditionNew
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 21 Years
Nature of Business Manufacturer
GST No. 06AABCD4754E1ZX

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameDynemech
MaterialIS 2062(Low Carbon Steel)
ShapeRectangle
ConditionNew
Automation GradeManual
Number Of FlowerPrecision Measuring Metrology Instrument Anti Vibration Tables For SV 3200 H4,P-81-03-A
SizeL-900 B-600 T-50 Mm
Total Carbohydrate1
Country of OriginIndia

1. Granite base of size L 900 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
16. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
17. Weight: kg
18. Execution in wooden box

Note- GST and Freight Charges are not included.

Additional Information

Payment Terms Western Union
Port of DispatchHaryana
Packaging DetailsWooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time3-4 Weeks
