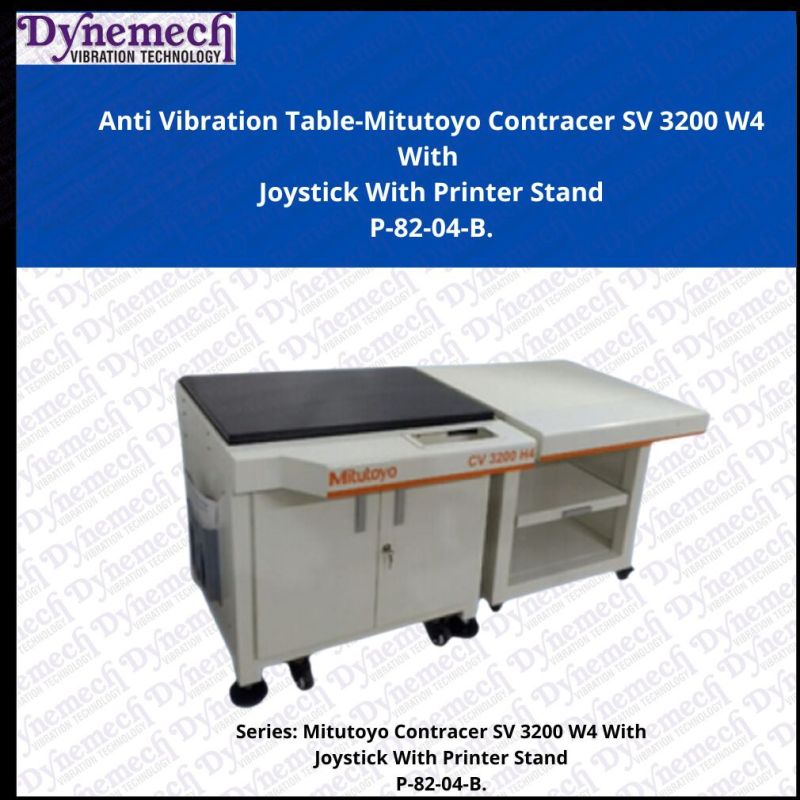

Precision Measuring Metrology Instrument Anti Vibration Tables for SV 3200 W4, P-82-04-B

1. Granite base of size L 1100 X B 550 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 9 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Power Strip in Rear; controller and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3” wheels with brake.
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm
16. Printer stand dimensions: L 600 X B 770 X H 730 mm
17. Weight: kg
18. Execution in wooden box

Note- GST and Freight Charges are not included.
