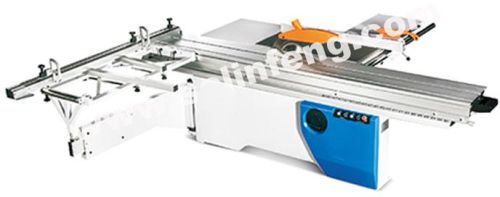

Precision Panel Saw Machine

LF130D Precision Panel Saw Machine is used for all kinds of panels, and used to trim cubic wood to be panels. Main used for woodworking industry, such as board making, laminated wood, boarded, floor, packing case and pallet, as well as building trades. It is characterized by precise uniform feeding and good grind ability for its double-ended bearing seat supporting, precise lineal guide rail and super wide feeding chain.Unique lubrication system can make sure lubricating function as well as stable and precise feeding.Frequency step less gear shift setting can keep wood smooth and make sure the size of work pieces� precise. Can make the notches on the soft, hard wood smooth and the size of work piece precise for adopting frequency conversion step less speed regulation. . The whole machine adopts totally seal design, which is more attractive and safer .
Features
1. Appiled with superior thickening steel plate and thick-walled square tube
frame, stable and durable , enduring twist .
2.The pedestal is applied with heighten frame, which has made a strong
ability of enduring twist; the sliding rail is made with superior carbon
chromium bearing .
3.The main saw motor is with electricity lifting , easy control.
Technical Data
Main technical data: LF130D
Sliding table length: 3000mm
Max.cutting length: 2920mm
Vertical cutting height: 80mm(Option100mm)
Vertical parallel baffle rod stroke:1250mm
Main motor lifting: Manual
Blade titling degree: 90�°
Main saw rpm: 40005000rmin
Main saw power: 5.5kw
Maxium diameter: �¢300*�¢30mm(Option�¢350*�¢30mm)
Scoring saw power: 0.75kw
Scoring saw diameter: �¢120*�¢22mm
Net weight: 860kg
