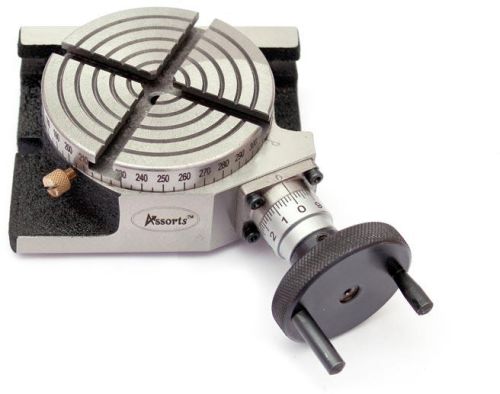

Precision Rotary Table 4 Inch (100 Mm )

Offers precision rotary table . Description: designed for smaller milling machines. Table diameter 100 mm table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-116" (50 mm approx) hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position.
