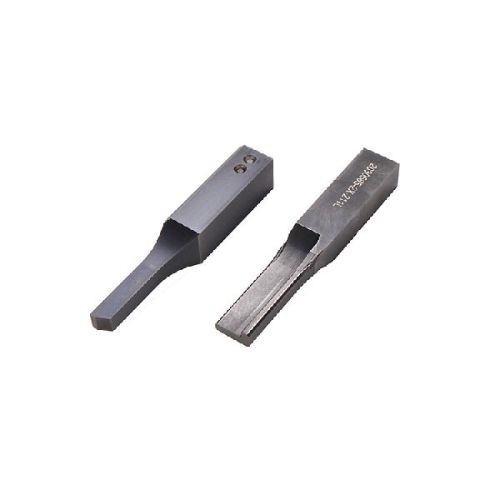

Precision Stamping Mold Components

Precision stamping mold components,germany mold components,china mold core insert
【core pins and sleeves】
material of each part of the mould, dimensional tolerance, form tolerance, surface roughness and heat treatment should be in accordance with the requirements of the drawings.
Nmyizebg06
category:precision stamping mold components
product name:precision stamping mold components
product size: customization
material:japan(skd11.skd61.skh51.s45c)
usa(aisa.d2.h13.p20.m2)
germany(din.2379.2363.2344.2347)
assab(rigor.stavax.impax.elmax.asp23)
hardness:58-60 hrc
grinding precision:0.001mm
electric discharge processing precision:0.002mm
delivery time:7 to 10 production days
product name precision stamping mold components
material imported material:skd11,skh9,skh51,skh55,high-speed steel,special material can customize
grinding precision 0.001mm
surface roughness for edm ra 0.04
edm precision 0.002mm
grinding angle clearness 0.002mm
moq 1 pc
in order to ensure the verticality of the core pins and sleeves, should first processing under the plane, and then processing the hole. In order to ensure the location of the upper and lower mold seat hole, you can put the two blocks together to process. Or the biaxial boring machine to machine.
Japan imported waida profile grinding machine ensures our punch mould parts to reach the grinding precision within 0.002mm, we could also help to deal with surface treatment like tic,tin,ticn,tialn if required.
