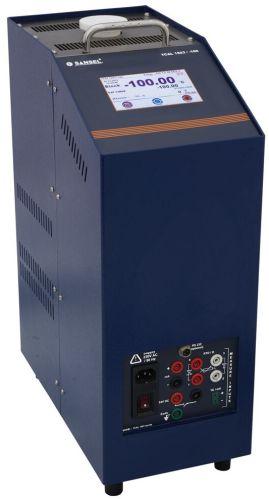

Precision Ultra Cool Dry Block Temperature Calibrator TCAL 1503/-100

Brand NameSANSEL
ConditionNew
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Model : TCAL 1503 / -100 Display : 4.3” True colour TFT display with touch screen Temperature Range : -100°C to 40°C @20°C to 30°C Ambient Resolution : 0.01 °C Block Stability (30 mins) :....

View More Details

Send Enquiry

Company Information

Sansel Instruments And Controls

Maduravoyal, Chennai, Tamil Nadu

4.6/5

(28)

View Number

Member Since 17 Years
Nature of Business Exporter
GST No. 33APGPS4066M1ZG
Company Video

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model : TCAL 1503 / -100
Display : 4.3” True colour TFT display with touch screen
Temperature Range : -100°C to 40°C @20°C to 30°C Ambient
Resolution : 0.01 °C
Block Stability (30 mins) : Better than ± 0.03°C at full range
Block Radial Uniformity : ± 0.05 °C at full range
Temperature Read out : °C / °F (selectable)
Heating time :
25°C to 40°C : 30 min
-100 to 25°C : 80 min
Cooling Time: 25°C to -100°C : 85 min
40 to 25°C : 12 min
Stabilization time : 15 minutes
Insert Dia. x Height: 30 x 120 mm
Test sensor immersion depth: 115 mm
Standard well holes in mm : Insert No. 1 : 5.1, 6.2, 6.2 & 8.1,
Insert No. 2 : 6.2, 6.2 & 10.2
Measure inputs: RTD – PT 100, PT 1000, TC – J, K, R, S, T, E, B, N , Analog – mA, V, mV, Ohms
Cold junction Accuracy: ± 0.3°C
Communication: RS 485 MODBUS
Switch Test: Provided
Sensor supply output: 24V DC ± 10% / 50mA max.
Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption : 500 VA
Overall Dimension in mm : 356 x 210 x 534 (L x B x H)(Approx.)
Instrument Weight :15.9 kg(with well insert)(Approx.)
