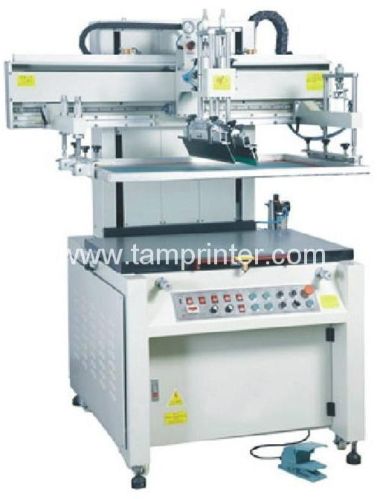

Precision Vertical Plane Screen Printing Machine

We are offering tm-d5070 precision vertical plane screen printing machine
technical parameter:
worktable largest size
500x700mm
max. Printing area
450x600mm *thickness0~100mm
max printing speed
1000pcshr
air consumption
104litremin（6bar）
power
220380v 6050hz 750w
dimensions
970x1160x1760mm（lxwxh）package 3cbm
weight
536kg
max screen flame :62*90cm
min screen flame: 50*30cm
features：
1. The vertical structure, the screen rises and falls uses air operated perpendicular, about pad head slides the precise straight line guide rail and uses the frequency conversion motor-driven.
2. Uses the monolithic integrated circuit integration microcomputer control, the simplicity of operator facilitates.
3. The printing shaving knife reciprocating action uses the pneumatic control, the pressure size adjustable, about the traveling schedule uses the photoelectric control, according to screen size length adjustable.
4. Control panel with manual, semi-automatic, fully automatic three modes, printing and indirect time digital control.
5. The independent nose elevating gear, cleans the screen doctor blade, the oil discharge knife, when the para-position color printing is very convenient, prints the platform to be equipped with the x、y、z direction the fine trimming.
6. the net clamps the arm to use the double guide pillar form, the adjustment is convenient, and according to the printer area size, provides to the net installment.
