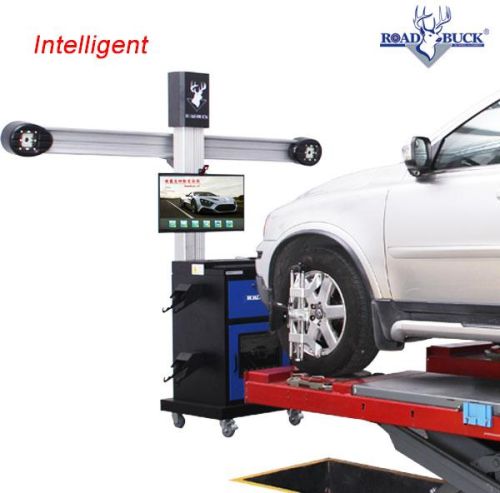

Precision Wheel Alignment Machine, Brand Name : Road Buck

We are offering 3d road buck wheel alignment machine with wheel alignment slip plates and wheel alignment turntables.
outstanding functions
1. Iaa1: during operating the cameras track the position of the vehicle and adjust to the corresponding height automatically.
2. 3d measurement: the 3d measuring techniques which is based on real running surface of wheels is more specific and precision.
3. Shooting system: composed of high-performance cameras and four target disks, the camera system can measure the vehicle’s running posture vividly.
4. Target disk: the solid-state target disks made of special materials are sturdy and durable without electronic components.
5. Pushing measurement: none of any wheel compensation is needed. Only one pushing can complete the measurement.
6. 3d max system: the unique visual 3d max dynamic measurement system is real and vivid.
7. Calibration system: only one simple calibration is needed after the initial installation without any repetitive calibration following.
advantages of 3d wheel aligners
the target disks are not composed of the electronic components used in traditional wheel alignment. The problems caused by the influence of the electronic components are eliminated.
there is no need to do complex wheel compensation for the wheel theoretic plane. Only one pushing measurement is needed to complete the precision measuring in order to shorten testing time.
principles
the corresponding datum plane and driving central line for calculating are constructed by the centre of four wheels got by the four target disks. Then according to the position of each disk in the plane and central line, the parameters of wheel alignment can be figured out. Therefore, measurement deviation due to the non-horizontal vehicle plane and lifting platform during the measurement can be avoided.
principles of v3d system
