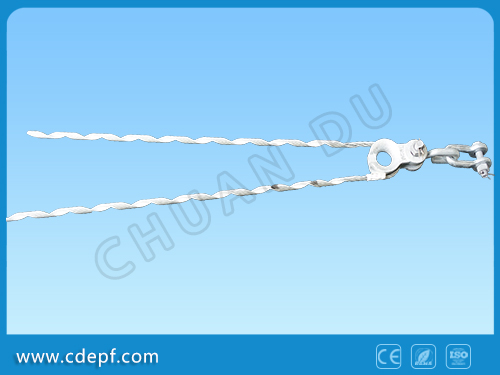

Preformed Guy Grip Clamp

Preformed Guy Grip Clamp  Product structure 1.      Inner preformed armor rods: Made of Aluminum-clad steel, with particulate grit applied to increase friction. The terminals bend toward outside to keep cable form abrasion. 2.      Outer tension preformed rods: Made of Aluminum-clad steel, the individual rod assembled into groups to increase the strength of tension clamp in the condition of decreasing the stress imposed on cable. 3.      Thimble: Hot galvanized steel. There are five types of failure loads: 20 KN. 50 KN. 70 KN.100 KN.120 KN. 4.      Clevis: Hot galvanized steel. It used to connect to thimble clevis and anchor shackle. There are four types: 50 KN. 70 KN. 100 KN. 120 KN. 5.      Anchor shackle : Hot galvanized steel. Connecting support fastening. The type: U-4 is 40 KN, U-7 is 70 KN, U-10 is 100 KN, U-12 is 120 KN. Productintroduction The Preformed Guy Grip Dead End Clamp for ADSS is used to connect terminal support, tension support, splicesupport and support of angle greater than 25° . Theconfiguration of High Strength Preformed Dead End Tension Clamp includes terminal support-1setsupport, tensionsupport-2setssupport, support of angle over 25° (angle) . Users accordingto the fiber cable diameter, RTS or span selection suitable Tension clamp. The Tensionclamp for ADSS includes: Inner preformed armor rods, outer tension
