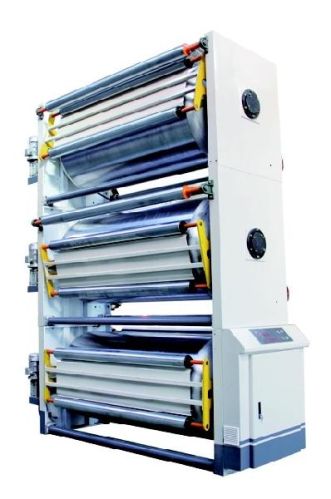

Nagpal Natraja Electric Preheater for corrugated, Certification : ISO 9001:2008, Voltage : 380V

Listing ID #2349775

2 Lakh - 5 Lakh / set

Get Latest Price

MOQ 1 Set(s)
TypeCardboard Box Making Machine, Automatic
CertificationISO 9001:2008
Voltage380V
ConditionNew
Supply Type Exporter, Supplier, Retailer, Importer

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Type Cardboard Box Making Machine, Automatic
Certification ISO 9001:2008
Voltage 380V
Condition New
Power 1-3kw
Driven Type Electric
Brand Name Nagpal Natraja
5 ply corrugated board plant 3 ply corrugated board plant
7 ply corrugated board plant corrugated board and box making machine
Preheater Cylinders
Warrenty 1 Year
Automatic Grade Automatic

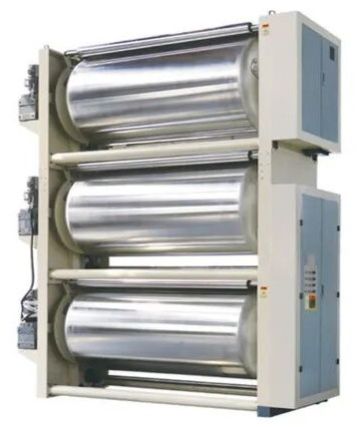

â�»RG-3-600triple preheater

â�»Structural featuresï¼�

â��preheat roller accord with the national standard of the pressure vessalï¼�and enclosed the pressure container certificate and inspection certificateã��

â��Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durableã��

â��electromotion adjustable angle, it can rotated adjust the paper preheat area in the range of 360°ã��

â�»technical parametersï¼�

1ã��diameter of preheat rollerï¼�ï¿ 600mm range of angle adjustmentï¼�360°rotation diameter of wrap angle axisï¼�ï¿ 85mm

2ã��steam temperatureï¼�150-200â�� steam pressureï¼�0.8-1.3Mpa

3ã��motor powerï¼�250W shortï¼�S2ï¼�working system 380V 50Hz

â�»Mainly purchased parts, raw materials and originï¼�

Name of main parts

Brands or place of origin

material

Steam rotation joint

Fujian quanzhou yujie

preheater

Hangang or jigang

Q235B pressure containerboard

bearing

HRB,ZWZ,LYC

Seat belt bearing

Zhejiang wuhuan bearing

reducer

Shandong dezhou jinbuhuan

contactor

France Schneider

Angle axis

GB seamless steel pipeï¿ 110

traps

Beijing

Technical Specifications

Power (Kw)	0.55
Working Width(mm)	1600
Direction	Left or right, according to customer
Pre-heater range	60^o~220^o
Temperature	130~200^oC
Diameter of pre-heater(mm)	Φ900
Steam Consumption	0.3t/h
Steam Pressure	0.8~1.4MPa
Power (Kw)	Pre-heater
Motor working mode	S2/S1

Additional Information

Payment Terms L/C, D/A, D/P, T/T
Port of Dispatch delhi
Delivery Time 30Days

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Video

Company Details

India's Pioneer Manufacturer and exporter for 3/5/7 ply Automatic corrugated board making machine, 2/3/4/5/6 colour Automatic flexo printer slotter, Automatic folder gluer, carton box making machine, automatic die cutting and creasing machine, flap gluing machine, corrugation machine, reel stand, reel to sheet cutting machine, and all machine for making cartons. wide varieties of spares and services for installation available in any part of the world.
