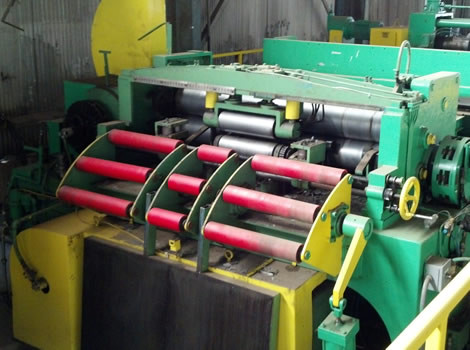

PRESS AUTOMATION SYSTEMS CUT-TO-LENGTH LINE
(72” x 60,000 lbs. x 0.135”)
Specifications
P.A.S – CUT TO LENGTH & SLITTING LINE – 480 AMPS – 3 PHASE COIL CART
P.A.S. – Coil Cart – 50,000# capacity
UN-COILER
P.A.S. – Un Coiler Model 2116 – SN 66423 (Expanding Plates)
P.A.S. – Un Coiler 50,000# coil capacity – Maximum Coil Width 72 inches
FEEDER
P.A.S. – Feeder Table to Pit – SN69603
FLATNER
P.A.S. – Flatner – SN 69602 – Model 7-472
FEEDER
P.A.S. – Feeder Roller to Shear – SN 69604 – Model 972
SHEAR
CINCINNATI-FORTE SHEAR – SN HSS1021 – 72” WIDTH – MAX. GA. THICKNESS .135
CONVEYOR
ROLLER CONVEYOR TO SLITTER – 65 INCHES X 135 INCHES
SLITTER
REEVES 10 INCH ARBORS – 72 INCH WIDTH SLITTER - .036 THRU .186 MAX. GA. THICKNESS
PLATFORM
OPERATORS PLATFORM – 5 FT. X 60 FT.
AIR COMPRESSOR & DRYER
SULLIVAN PALATEK – 5O HP – 460 AMP – 3 PHASE – MODEL 50 DG (2000 HRS)
200 GALLON RESERVE IN LINE AIR TANK
PARKER STARLETTE PLUS AIR DRYER – SN 398077550003
ELECTRICAL SUPPLY
SIEMENS – POWER MODULE 240 – 50 HP DRIVE
ALLEN BRADLEY – POWER FLEX – 60 HP DRIVE
