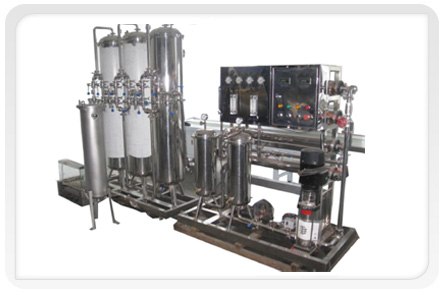

Stainless Steel RO System, Power : 0.75Kw

• To remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
• The effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L, iron content of less than 0.05mg / L, SDI less than or equal to 5.
• Water filter is a kind of “physical – chemical” process

• Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
• Pure water in the manufacturing process, activated carbon adsorption performance in four areas: reducing the oxidation of water requirements; to avoid entering the organic matter, pollution ion-exchange membrane and reverse osmosis membrane; reduce the residual chlorine in the water to protect the reverse osmosis membrane; remove water three halides, such as to improve the overall quality of water.

• Cationic resin used for water softening, primarily to remove hardness of water.
• So as to effectively prevent the reverse osmosis membrane fouling.
• Working pressure : 0.2 --- 0.6 Mpa
• Temperature : 5 – 60 ℃.

The function of Micron filter is to be retention of the particles larger than 5μ & 1μ in order to prevent it from entering the reverse osmosis system.
Micron filters adopted corrosion-resistant 304 stainless steel filter housing.Filter element is made ofcharacterized by:
 1) Hole-shaped and cone-shaped structure;
 2) filter to enter the depths, forming deep filtration;
 3) The quantity of pollutants, long life;
 4) easy to replace.

This process is to remove salt from water by membrane separation technique.

The role of high-pressure pump for reverse osmosis plant is to provide sufficient bulk water pressure to ensure the normal operation of reverse osmosis membrane.
