Product Details
Company Details

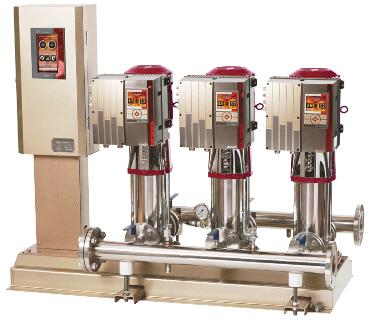

(Pressure boosting systems with energy saving, low-frequency drives)

HyP-ULTRA pressure boosting systems feature variable frequency drives that reduce power consumption and aid in extending the life of the system by reducing wear and tear. These pressure boosting systems are ideal for commercial and residential complexes. The HyP-ULTRA can also be integrated with existing or new building management systems, thus allowing monitoring and control of the system. It is designed to reduce or eliminate water hammer effects.

Technical Details

Pressure range: 0-25 bar
Size range: 0-240 m
Material of construction:pump base - CI (TFV)/AISI 304(TFVI)/AISI 316(TFVL); impeller - AISI 304 (TFV, TFVI)/316 (TFVL); pump body - AISI 304 (TFV, TFVI)/316 (TFVL); suction manifold - AISI 304/AISI 316; discharge manifold - AISI 304/AISI 316; isolation valve - AISI 304/AISI 316; NRV valve - AISI 304/AISI 316
Flow range: 0-900 m3/hr

Applications

Commercial complexes
Large residential buildings
Skyscrapers
Malls and multiplexes

Key Features

Variable Frequency Drives (VFDs) ensure maximum power saving and minimum wear and tear of pumps
No need of a standby pump since all pumps on soft start
BMS compatibility/remote communication possibility
Robust systems
