Pressure Die Casting Machine

pressure die casting machine

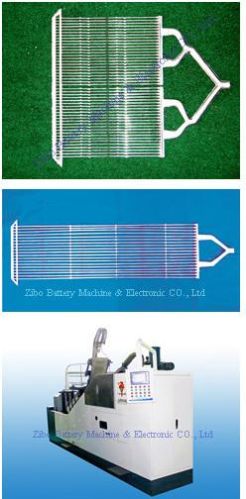

Application: Used for die-casting the spines for positive plates
Composition: Die-casting machine、mould、shearing machine
Spine length: ≤ 620 mm
Cooling water: 0.2-0.3 Mpa
Total power: 45 - 52 Kw
Performance & Features
○ It mainly uses hydraulic controlled die casting system with step less regulator.
○ The lead melting pot, nozzle and mould are heated by electricity, and their temperature are digitally displayed. It will alarm if the temperature gets too high.
○ Circulating cooling water flows through the cooling system of the mould. The temperature of the mould is auto-controlled and adjustable.
○ The mould is made of alloy with high strength and hardness. The working cycle of mould closing, pressing, opening and ejecting is completed automatically.
○ The imported touch screen and PLC are used in programmable control for the machine.
○ The actual processing data are displayed on the monitor. It has manual, semi-automatic, fully automatic control functions, and features dynamic demonstration and digital setting for the process parameters. It is convenient for the operators to understand the operation process clearly.
Specifications:
Parameter
Part no Spine length
(mm) Spine Diameter(mm) Capacity of Lead
Melting pot Total power Production
Capacity
YZJ-300I ≤350 ≥1.8 1.5 46 2-4
YZJ-300KI ≤300 ≥1.8 1.5 50 4-6
YZJ-300KII ≤300 ≥1.8 1.5 50 4-6
YZJ-500I ≤520 ≥3.2 1.5 52 2-3
YZJ-500II ≤520 ≥3.2 1.5 52 2-3
YZJ-700I ≤620 ≥3.2 1.5 52 2-3
YZJ-700II ≤620 ≥3.2 1.5 52 2-3
