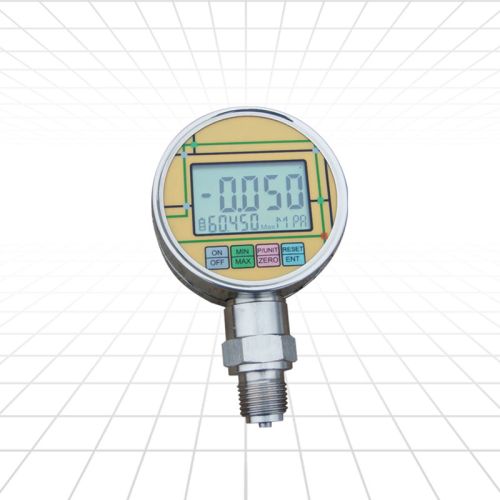

Contact SupplierWe offer pressure gauge, manometer, digital pressure gauge.
Case: diameter 80mm, sus304
medium: incompatible gases and liquids
wetted material: sus316
pressure range: 0--60mpa
pressure-unit:mpa、kgf/cm2、bar、psi ,kpa, etc
display: 5-digit lcd, character height 18mm
temperature stability : ≤0.03%fs/c
over pressure: 2xfs@ 35mpa
accuracy: ±0.25%fs
temperature compensation:-10-70c
operational environment:
ambient temperature: -10-60c
medium temperature: -10-80c
storage temperature: -20-70c
power: 6v battery (4pcs aaa)
pressure port: g1/2,1/2"npt, 1/4"npt, m20x1.5(optional)
protection class: ip 65
