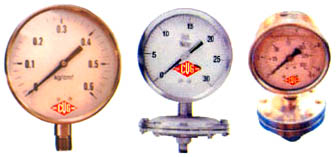

Pressure Gauges, Dial Size : 2 ½", 4", 6", 8", 10"

Dial Size2 ½", 4", 6" , 8", 10"
Connection¼", 3/8", ½", ¾ " and 1" BSP, NPT, Metric thread, Male/Female, adj./fixed
Accuracy+ 1% of F.S.D.
Over Range Protection125 % of F.S.D.
Case & BezelSS 304/ Die Cast Aluminium Weather Proof
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Dial Size2 ½", 4", 6" , 8", 10"
Connection¼", 3/8", ½", ¾ " and 1" BSP, NPT, Metric thread, Male/Female, adj./fixed
Accuracy+ 1% of F.S.D.
Case & BezelSS 304/ Die Cast Aluminium Weather Proof
Over Range Protection125 % of F.S.D.

Elastic elements when subjected to pressure get deformed. This deformation when measured gives an indication of the applied pressure. These elements may be in the form of Diaphragm, Bourdan Tube, Capsules, Bellows, Helical Tube. Etc. These deformations can be measured by mechanical means

Window : Toughened Glass, Plain Glass, Acrylic Glass
Pointer : Micro Zero or center zero adjustable
Movement Material : SS 304/Brass
Bourden Material : SS 316/Brass
Socket Material : SS 316/Brass
Entry : Bottom Back
Mounting : Direct, Panel, Surface
Other Fittings : Blow out disc, Snubber, Bracket etc.
