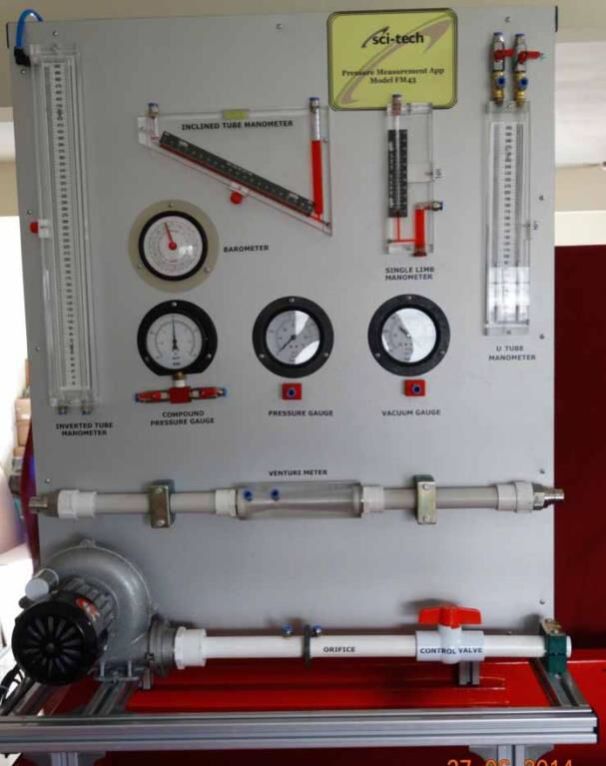

Sci-tech Pressure Measurement Bench Model FM 43 for Education

Sci-tech Pressure Measurement Bench Model FM 43 is a self-sufficient unit to study the fundamental concept of Pressure Measurement and Various Pressure measurement Devices. The set-up consists of an Air blower supplying pressurized air. Arrangements are made to connect different pressure measuring devices to the Air supply & understand use of them. The pressure measuring devices include set of Manometers, set of Bourdon type gauges, Barometer etc.

v  Manometers-

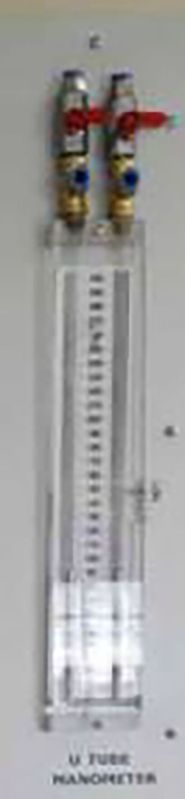

Ø  U Tube Manometer: Acrylic; 0 – 1000mm H₂O

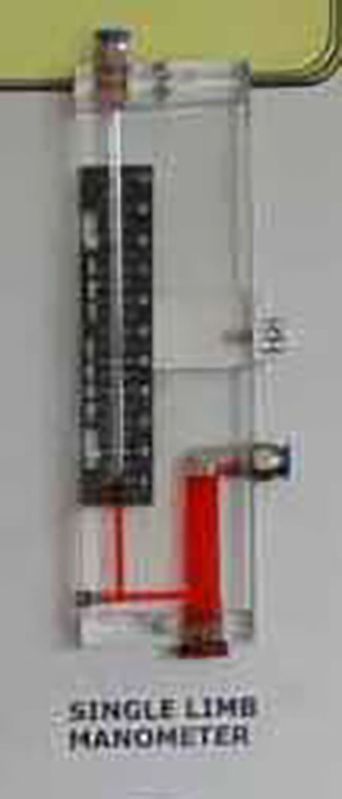

Ø  Single Limb Manometer: SS; 0 – 2.0 kPa

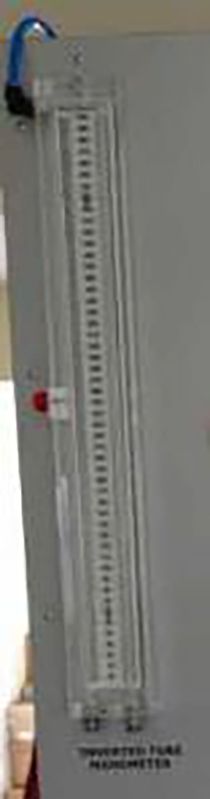

Ø  Inverted tube Manometer

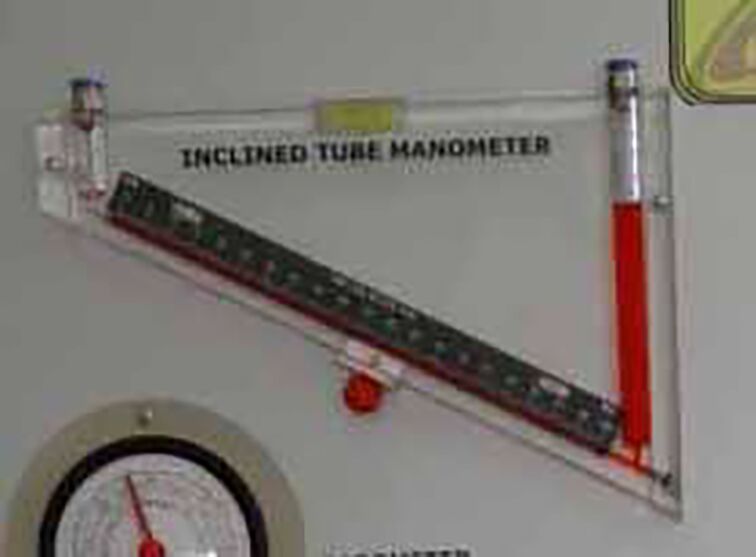

Ø  Incline tube Manometer: Acrylic; Range 0 – 3 H₂O

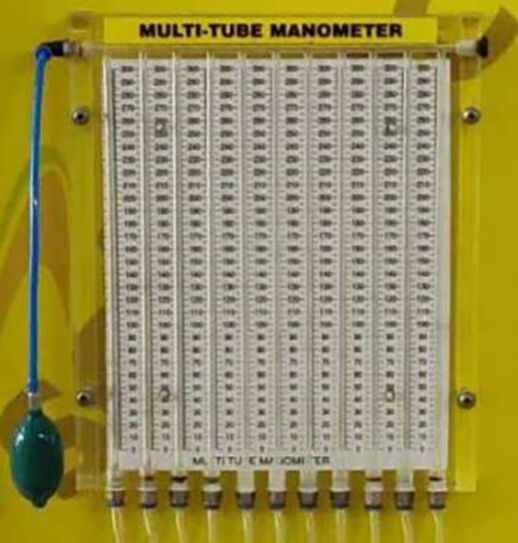

Ø  6 Tubes Multi-Tube Manometer

Ø  11 Tubes Multi-Tube Manometer

                   Ø  36 Tubes Multi-Tube Manometer (Optional)

v  Vacuum Pump: @15LPM Capacity; 22” Hg max vacuum; 20psi max pressure (US$ 350)

v  Pressure Gauge: 0 – 35psi; SS; Oil filled (US$ 60)

v  Vacuum Gauge: 0 - 760 mm of Hg;; SS; Oil filled (US$ 75)

v  Differential Pressure Gauge: Al or SS cover; 30 psi max (US$ 95)

v  Vacuum Tank: SS; 1.1L capacity

v  Pressure Calibrator: Operating Range 2bar/28psi; Over Range 4 bar / 58psi

v  Centrifugal Blower

v  Multimedia computer based training package on pump construction & characteristics.

v  Cut sections of valves & pumps

LIST OF EXPERIMENTS

v  Study of Pressure measuring System.

v  Study of Barometer.

v  Pressure measurement using different Manometers.

v  Pressure measurement using Bourdon type Pressure Gauges.

OPERATION & MAINTENANCE MANUAL

Self-explanatory operating & maintenance manual will be provided. This will include Theory, operating procedure, standard results, and maintenance procedures.

v  Transparencies & Slides
